dual rail - center mount stepper - prototype 2 - models and assembly

The first prototype parts revealed the Belt Retainer Bracket was hitting the Stepper Drive Pulley.

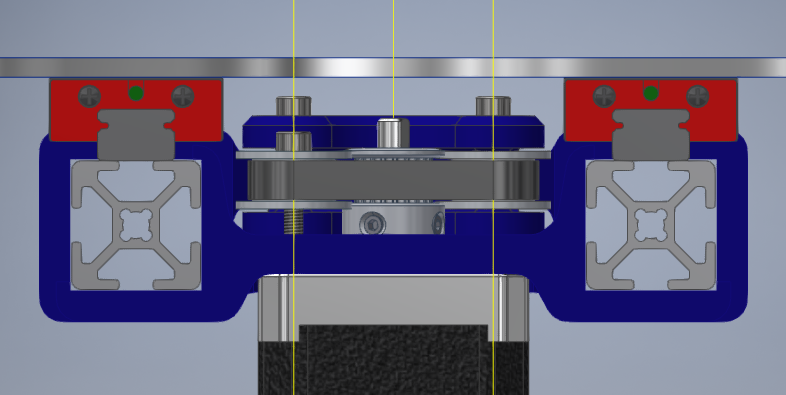

The entire belt run was moved down ~5mm to increase the clearance between the Belt Retainer Bracket and the Stepper Drive Pulley.

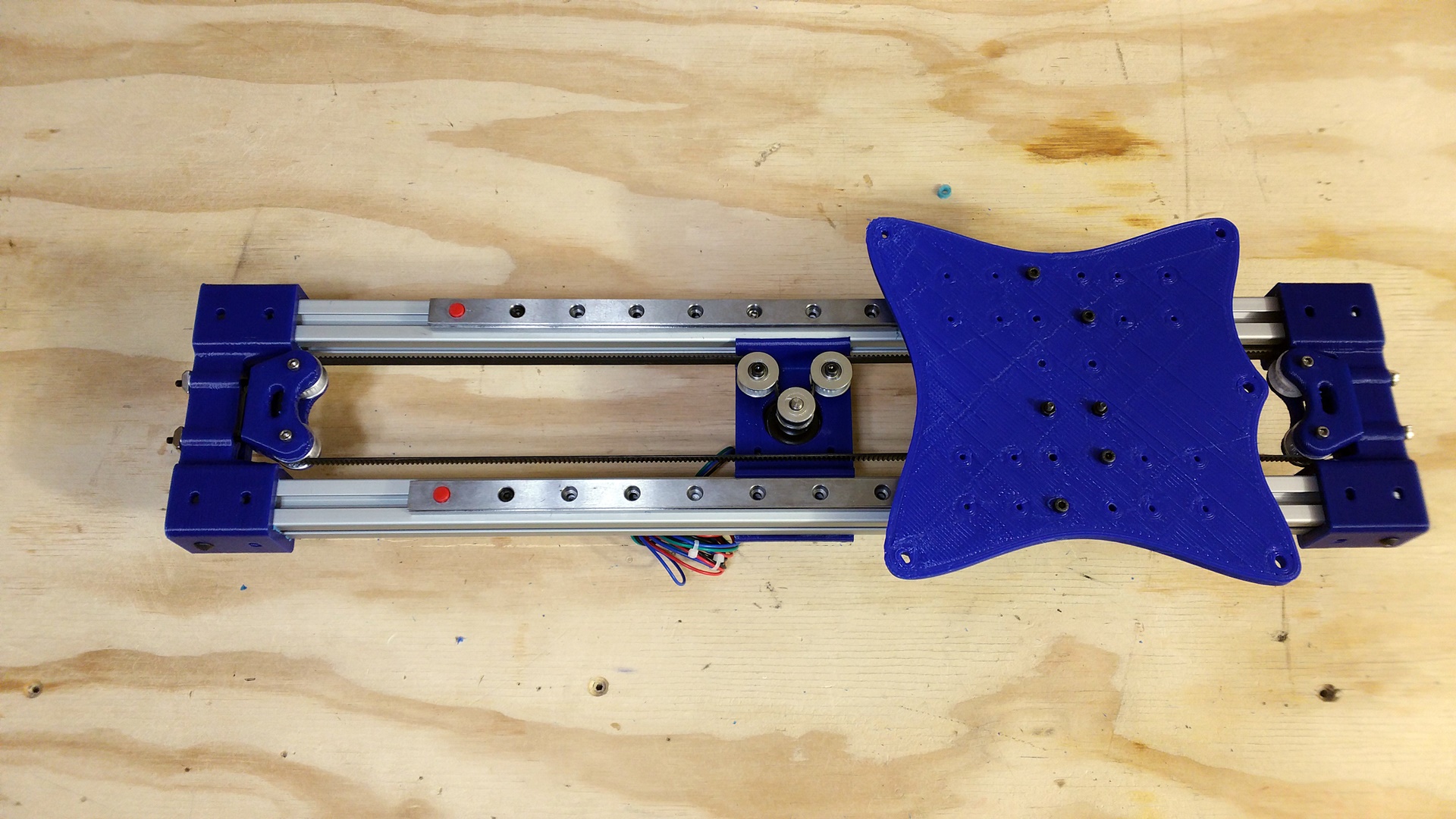

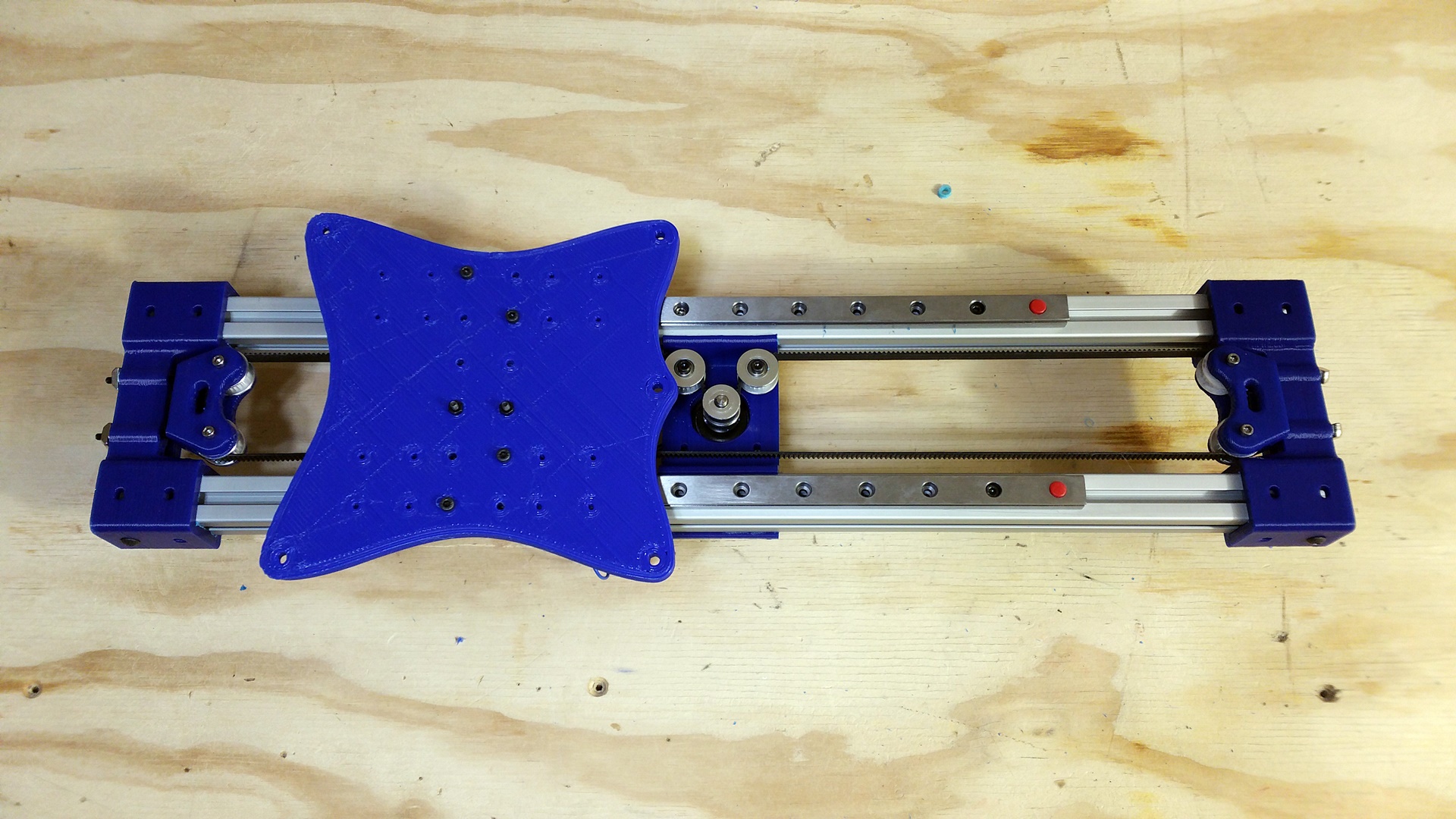

Prototype 2 parts printed and assembled:

New parts have clean movement with no interference!

Now ready to add a limit switch and swap this bed onto a functioning machine.

-bornity
