Deltesian Double Bed, Double Rail - Testing the Gen 2 Conversion

The plan: Convert the Y-Axis from 3 extrusion to 2 and move the timing belt from above to below the Carriage Plate.

The plan: Convert the Y-Axis from 3 extrusion to 2 and move the timing belt from above to below the Carriage Plate.

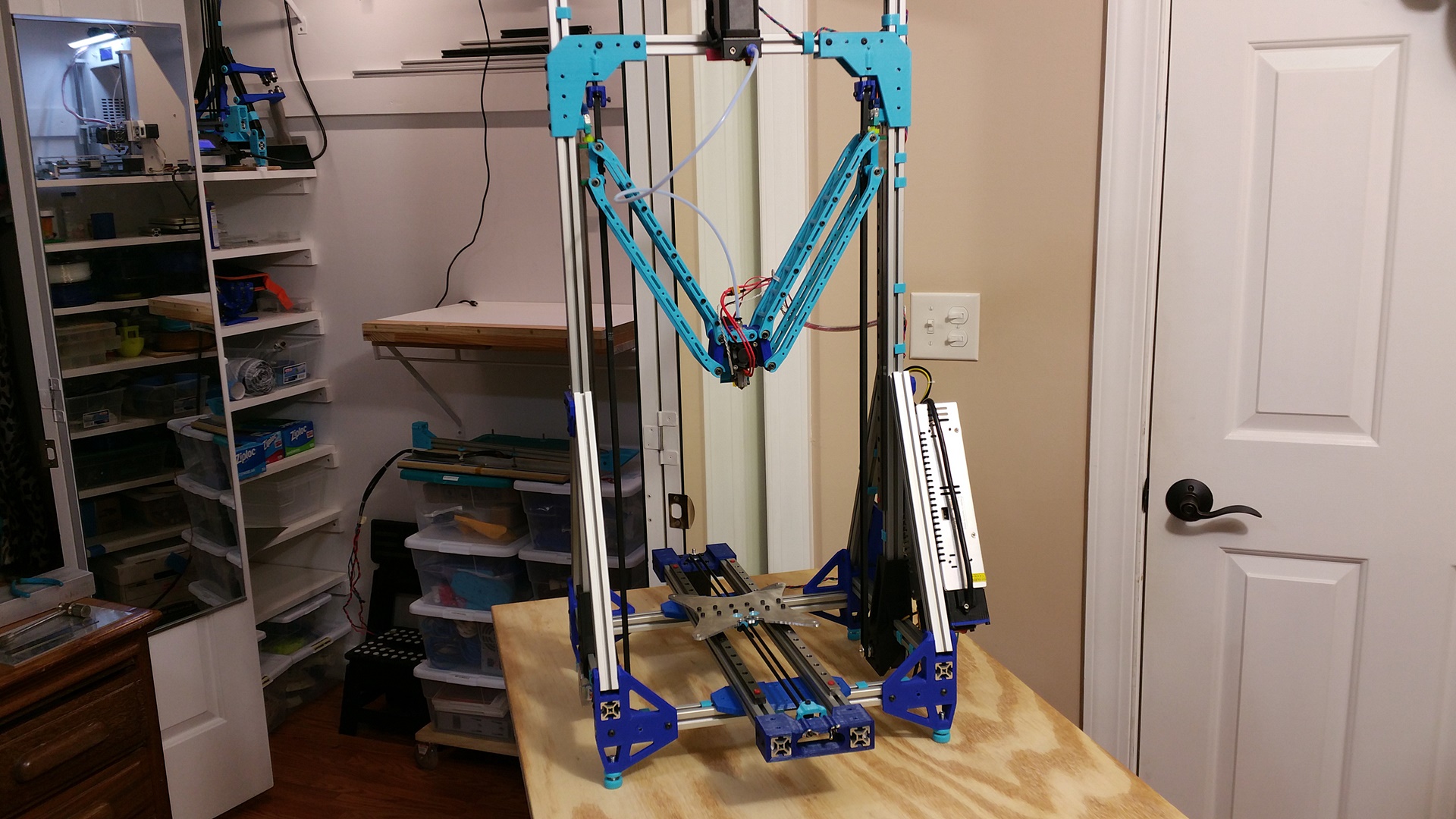

A Final Look at the 3 Extrusion Double Bed

A Final Look at the 3 Extrusion Double Bed

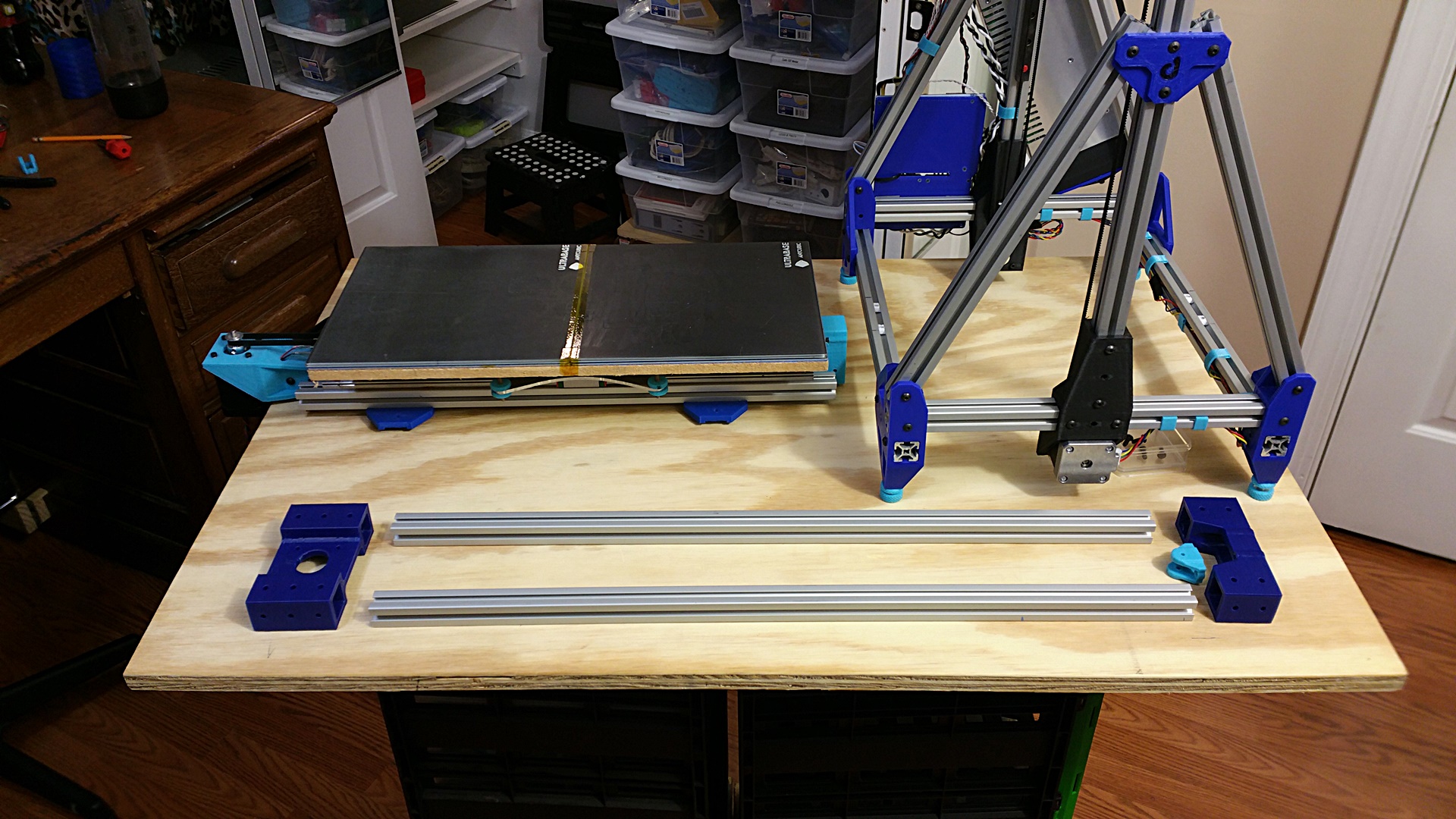

Visualizing the New Extrusions and Brackets compared to the existing Y-Axis

Visualizing the New Extrusions and Brackets compared to the existing Y-Axis

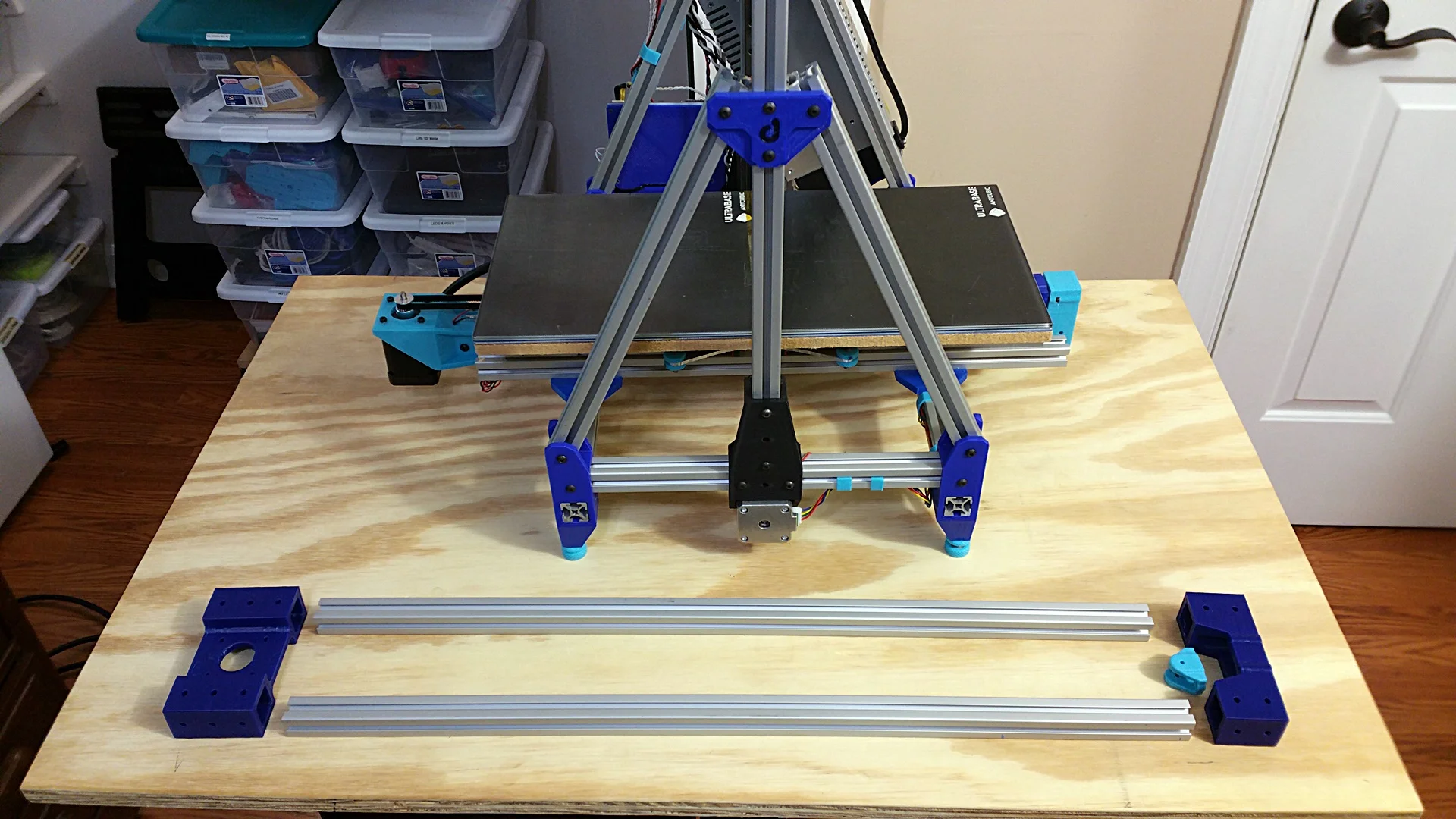

Move Mock up visualization of the New Extrusions and Bracketry for the Y-Axis

Move Mock up visualization of the New Extrusions and Bracketry for the Y-Axis

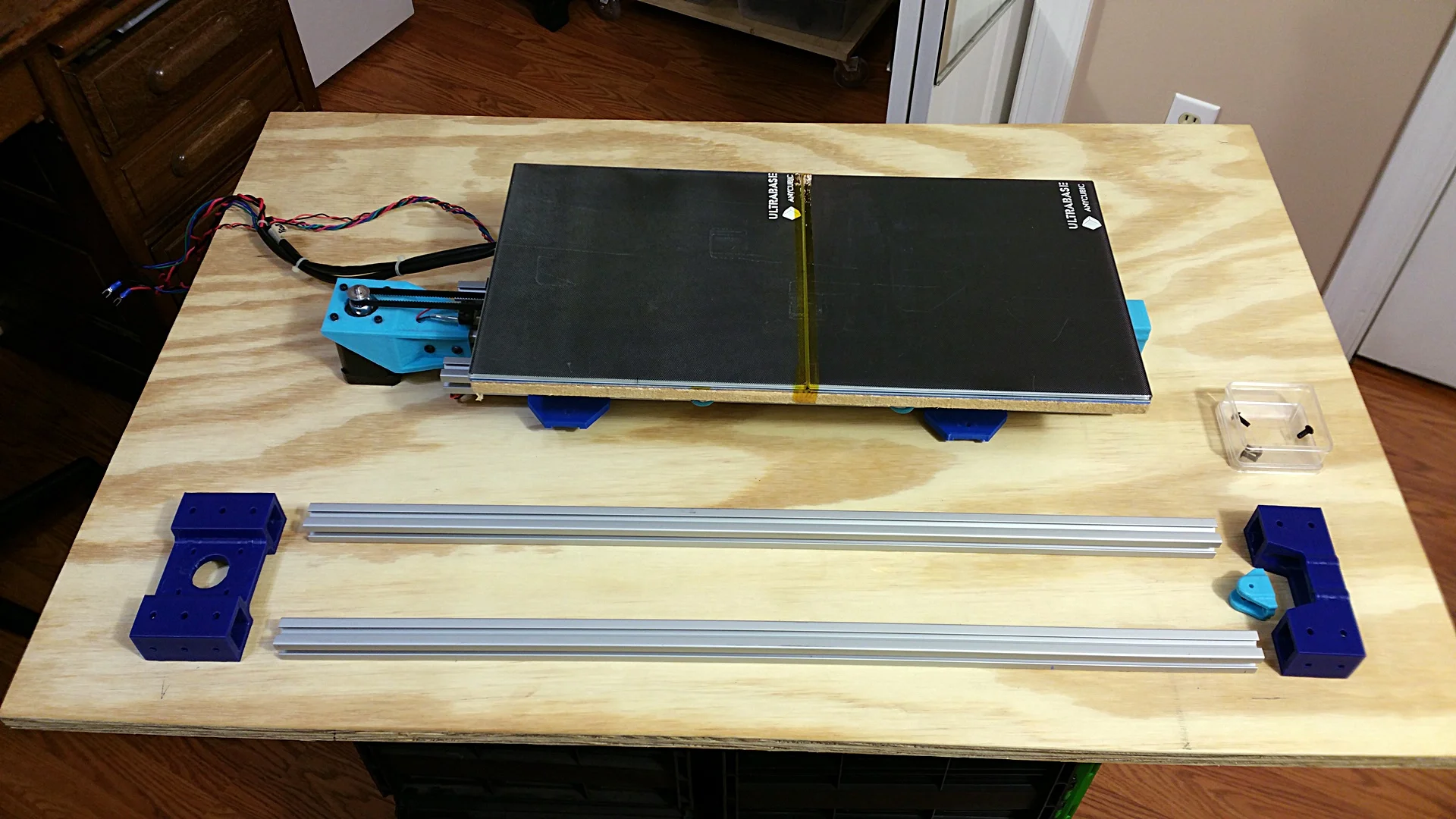

Removing the Rear Mounting Screws for the Bed

Removing the Rear Mounting Screws for the Bed

Removing the Front Mounting Screws for the Bed

Removing the Front Mounting Screws for the Bed

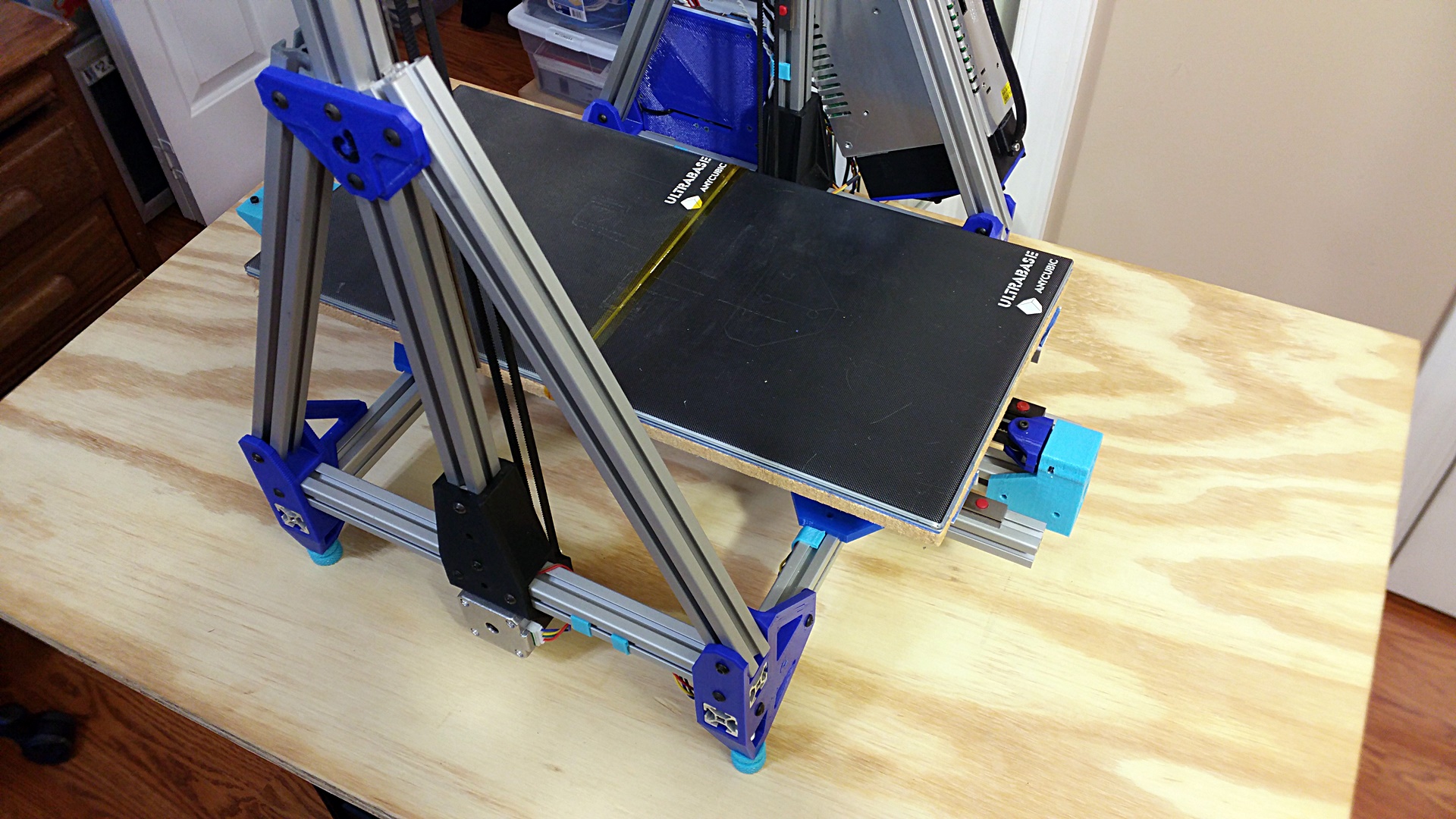

Double Bed removed from the XZ Frame.

Double Bed removed from the XZ Frame.

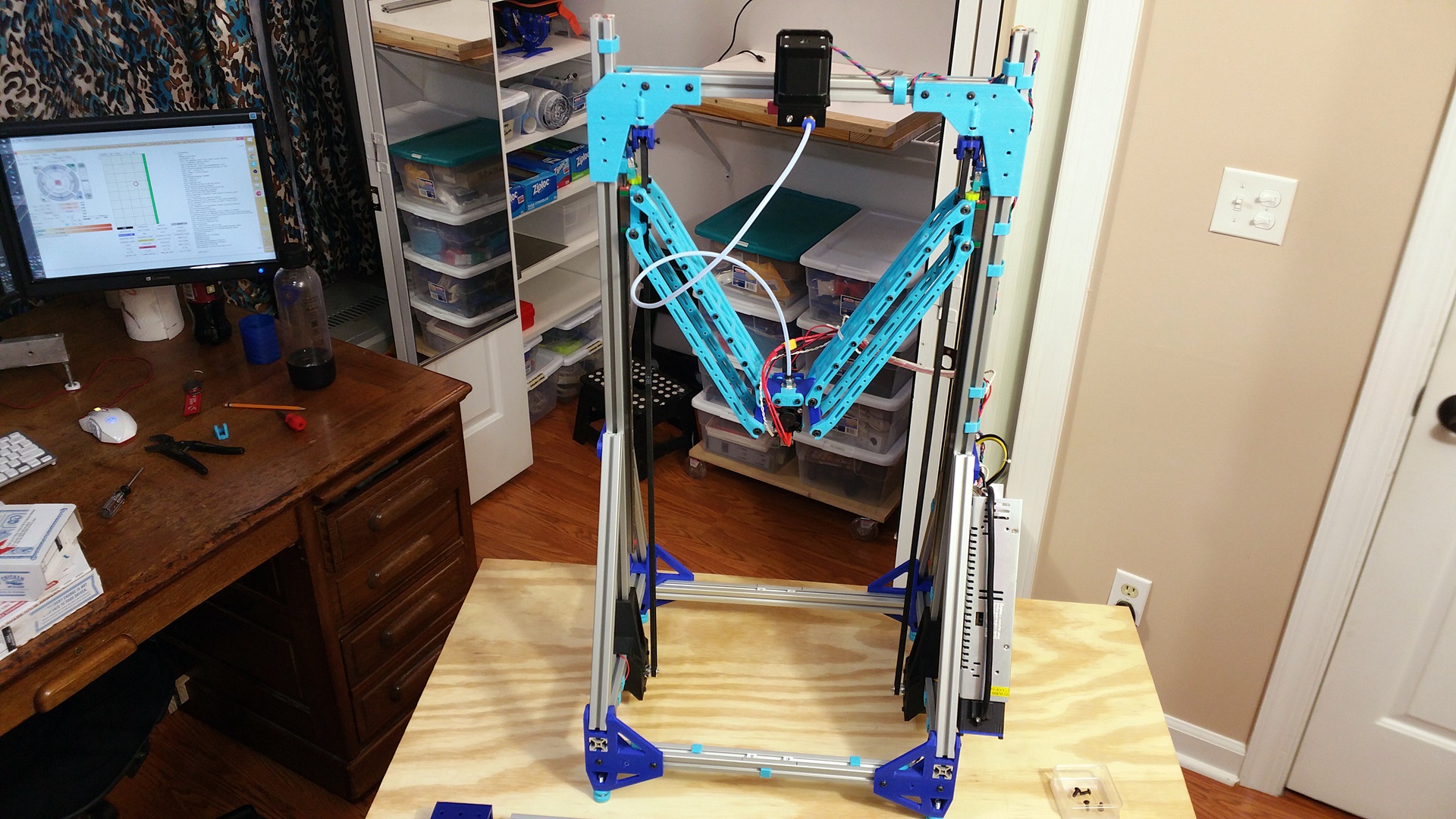

XZ Frame w/o the Y-Axis

XZ Frame w/o the Y-Axis

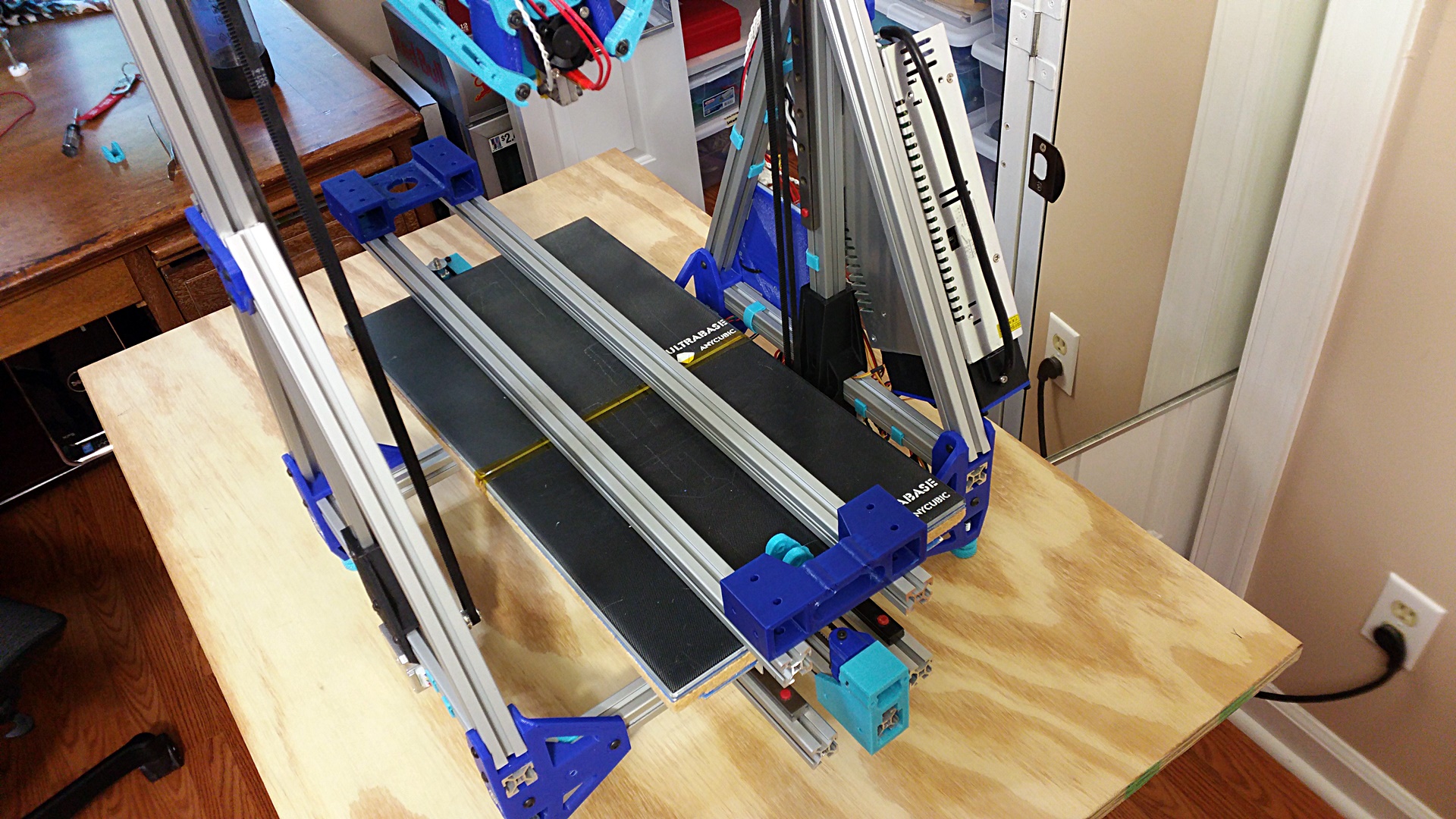

3 Extrusion Double Bed

3 Extrusion Double Bed

Bottom of the 3 Extrusion Double Bed

Bottom of the 3 Extrusion Double Bed

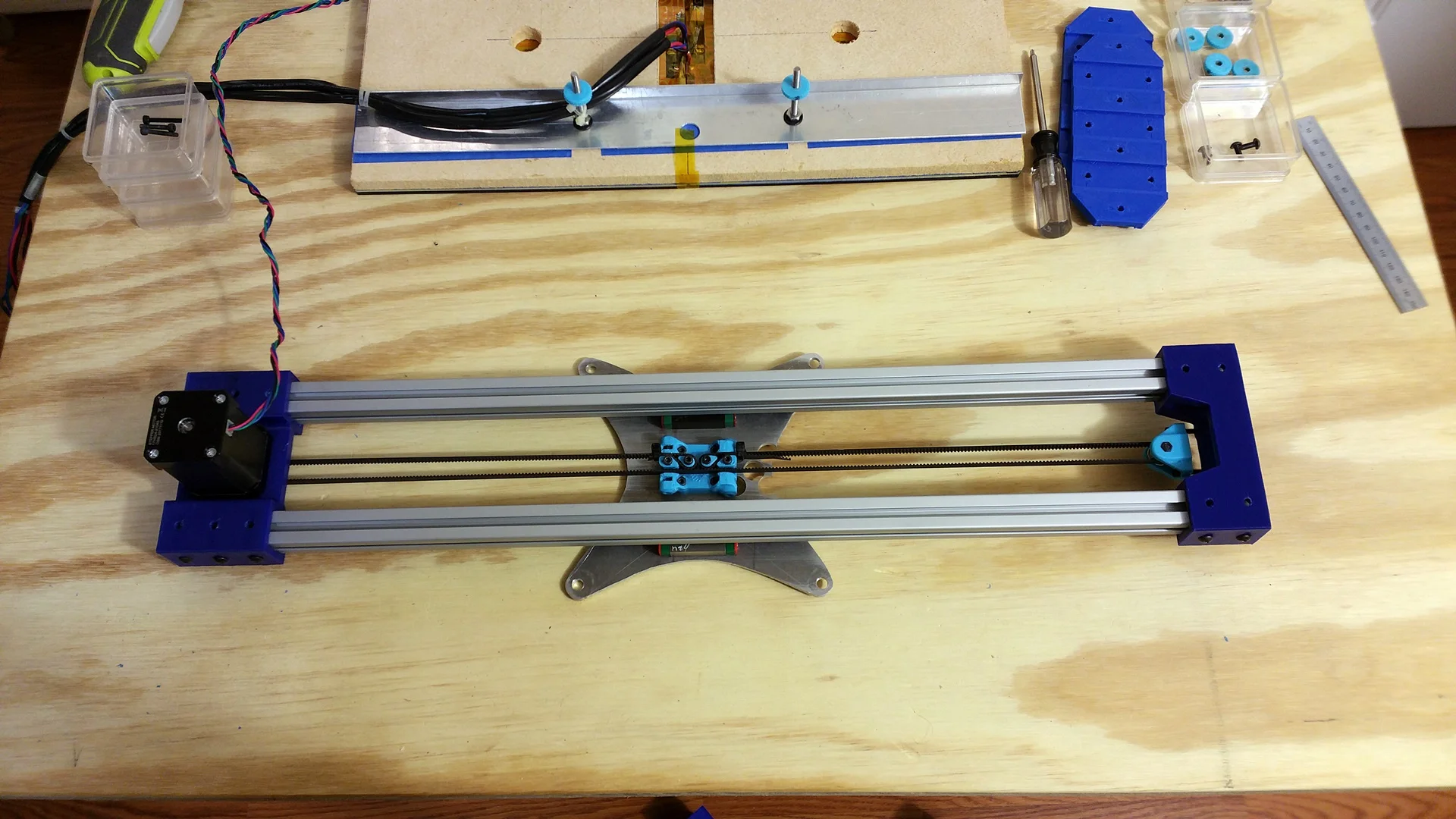

Top of the Assembled Y-Axis

Top of the Assembled Y-Axis

Bottom of the Y-Axis. The belt runs underneath the Carriage Plate

Bottom of the Y-Axis.
The belt runs underneath the Carriage Plate

Test fitting to the XZ Frame

Test fitting to the XZ Frame

Full Frame Shot of the Test Fit.    That's if for the night! Bed install and printing tomorrow!

Full Frame Shot of the Test Fit.


That's if for the night! Bed install and printing tomorrow!
