Dual Rail - Center Mounted Stepper - Prototype 1 Assembly test

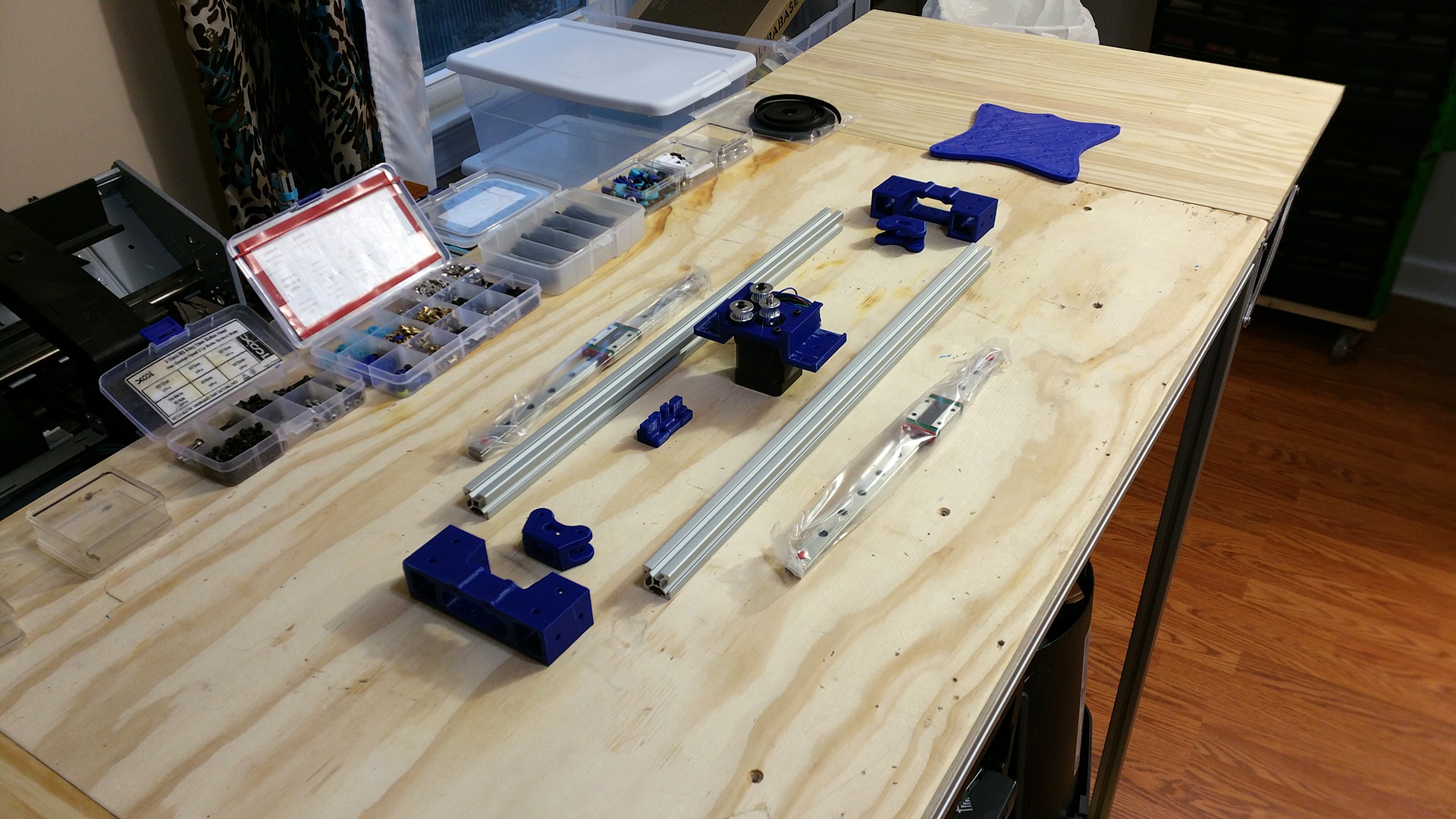

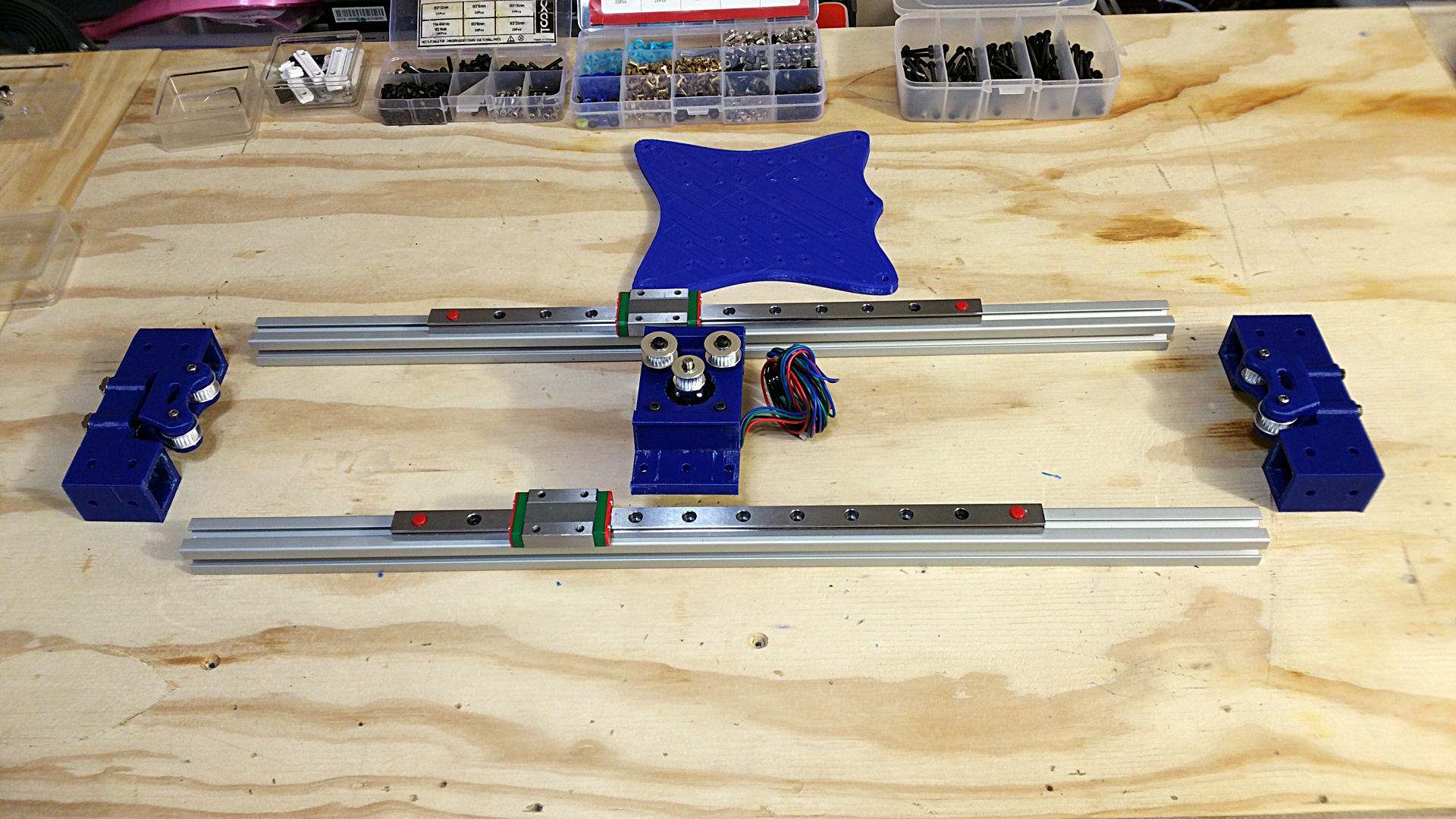

The prototype CAD models are finished. Printed up all these test parts w/ Deltesian #001. Time to assemble and test motion of the belt system.

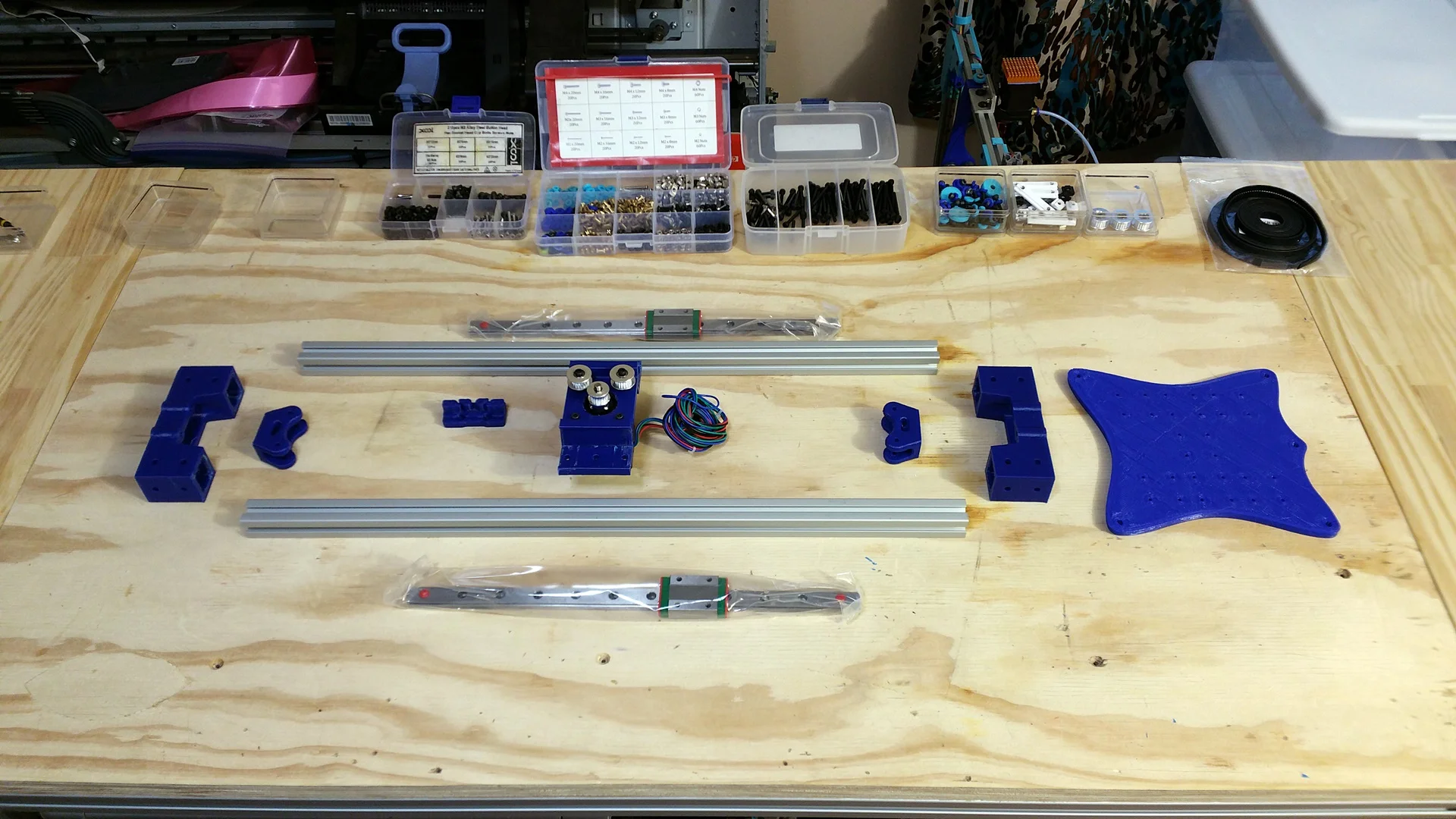

2019-01-27 17.03.23.jpg
2019-01-27 18.18.51.jpg

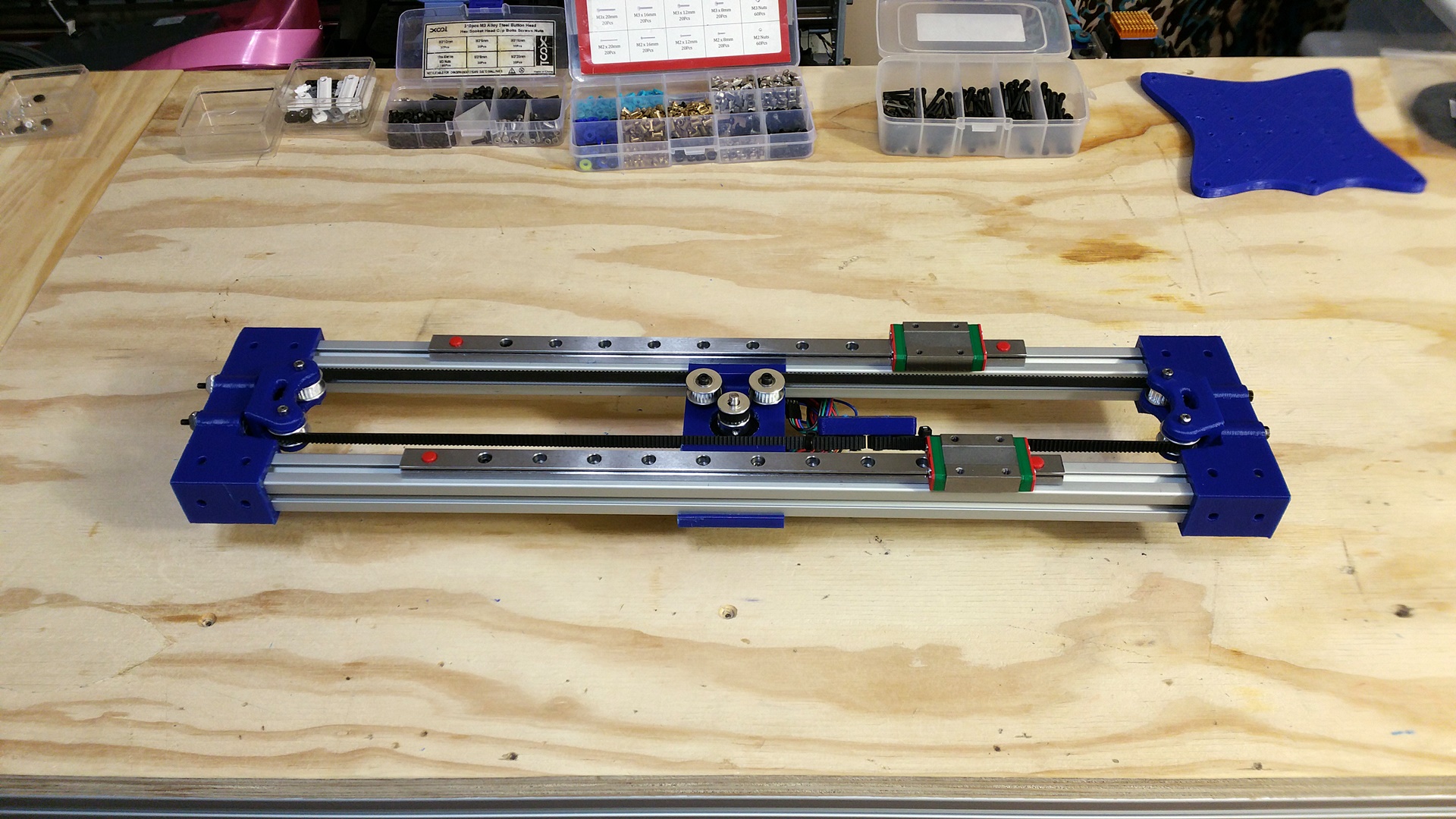

It’s hard to tell from the gif, but the Belt Clamp (Retainer) Bracket hits the Stepper drive pulley.

The Timing Belt needs to be lowered, to give the Belt Clamp Bracket more clearance. Time to modify/redesign the front/back brackets and the Center Stepper Mount Bracket.
