Making Progress on the GEN2 - Y-Axis Bed assembly!
Parts are now uploaded to Github if you're interested: https://git.io/fNYVz
(I apologize if the link changes but that's how things go with developing parts.)

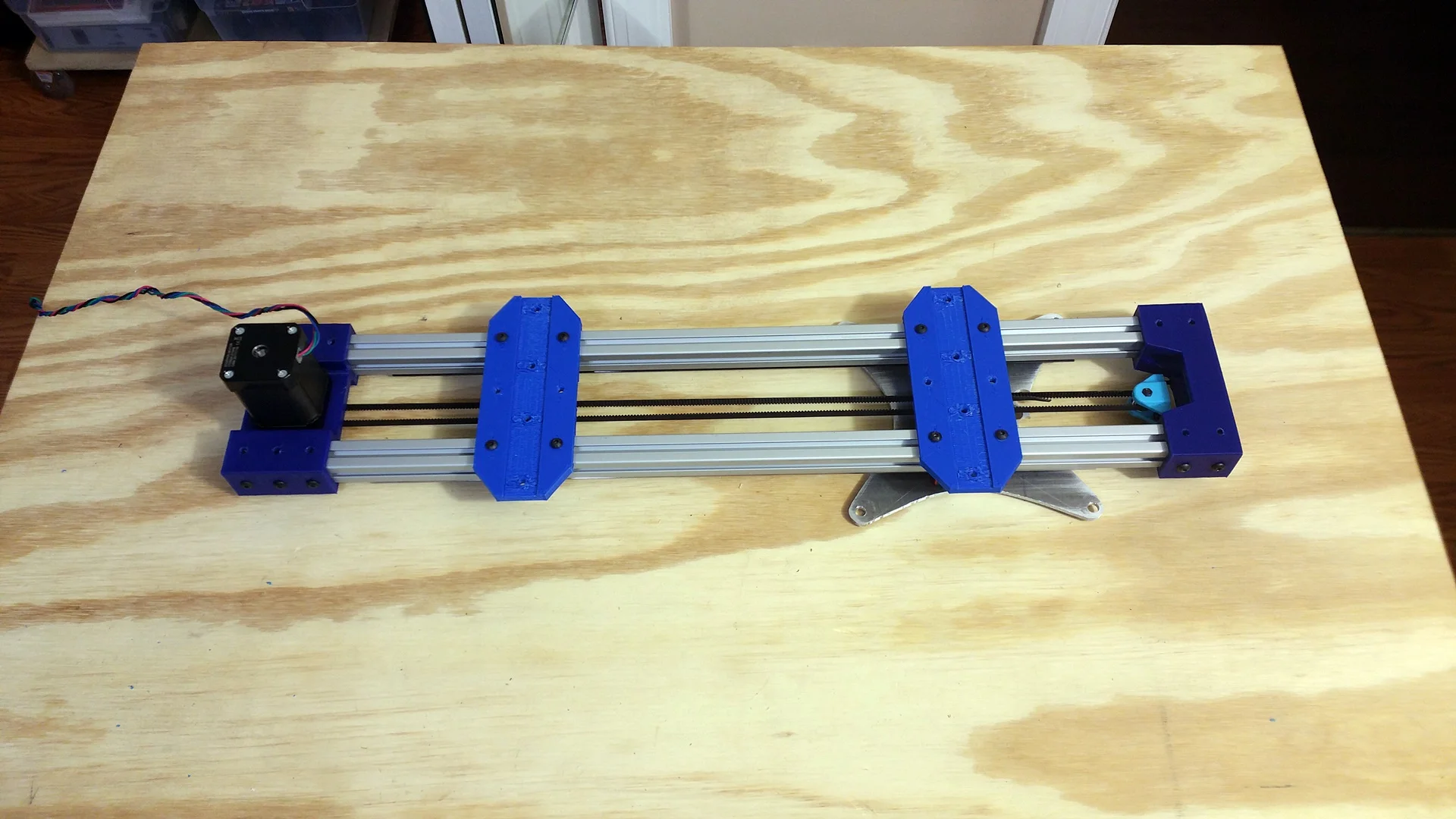

Mounting Brackets from Y to X Extrusions.

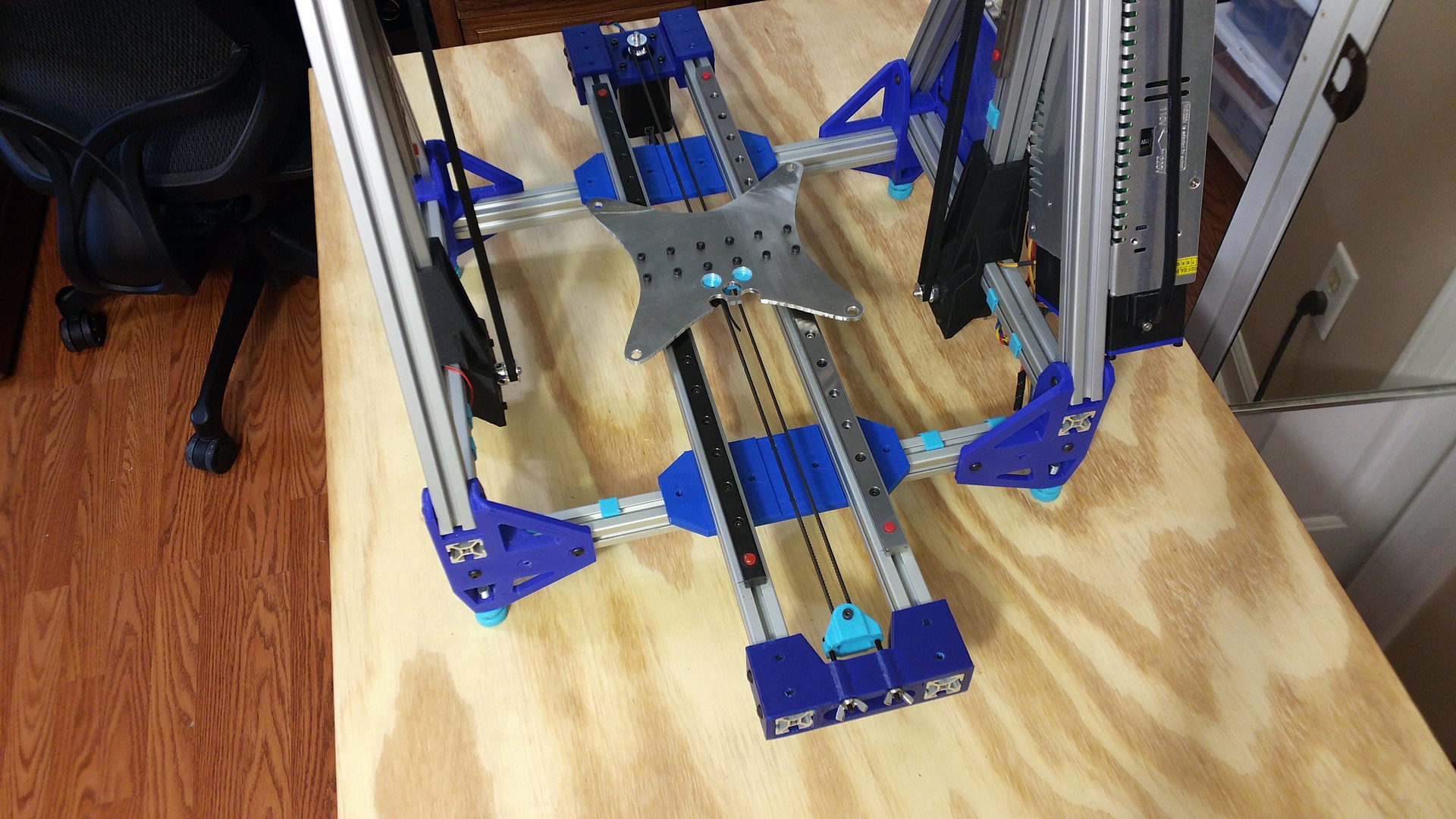

Installed on XZ-Frame

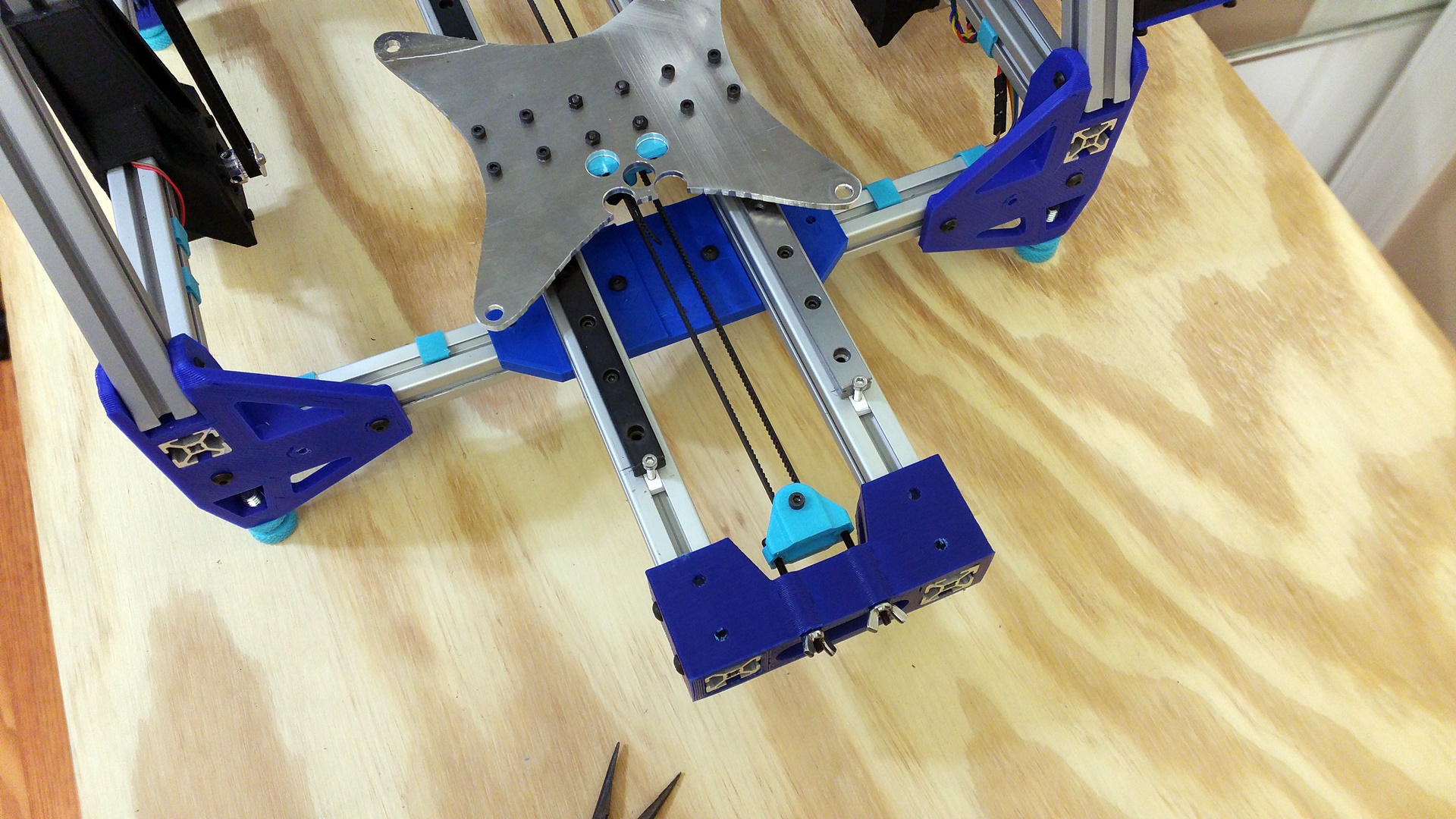

Tensioning Bracket up Front

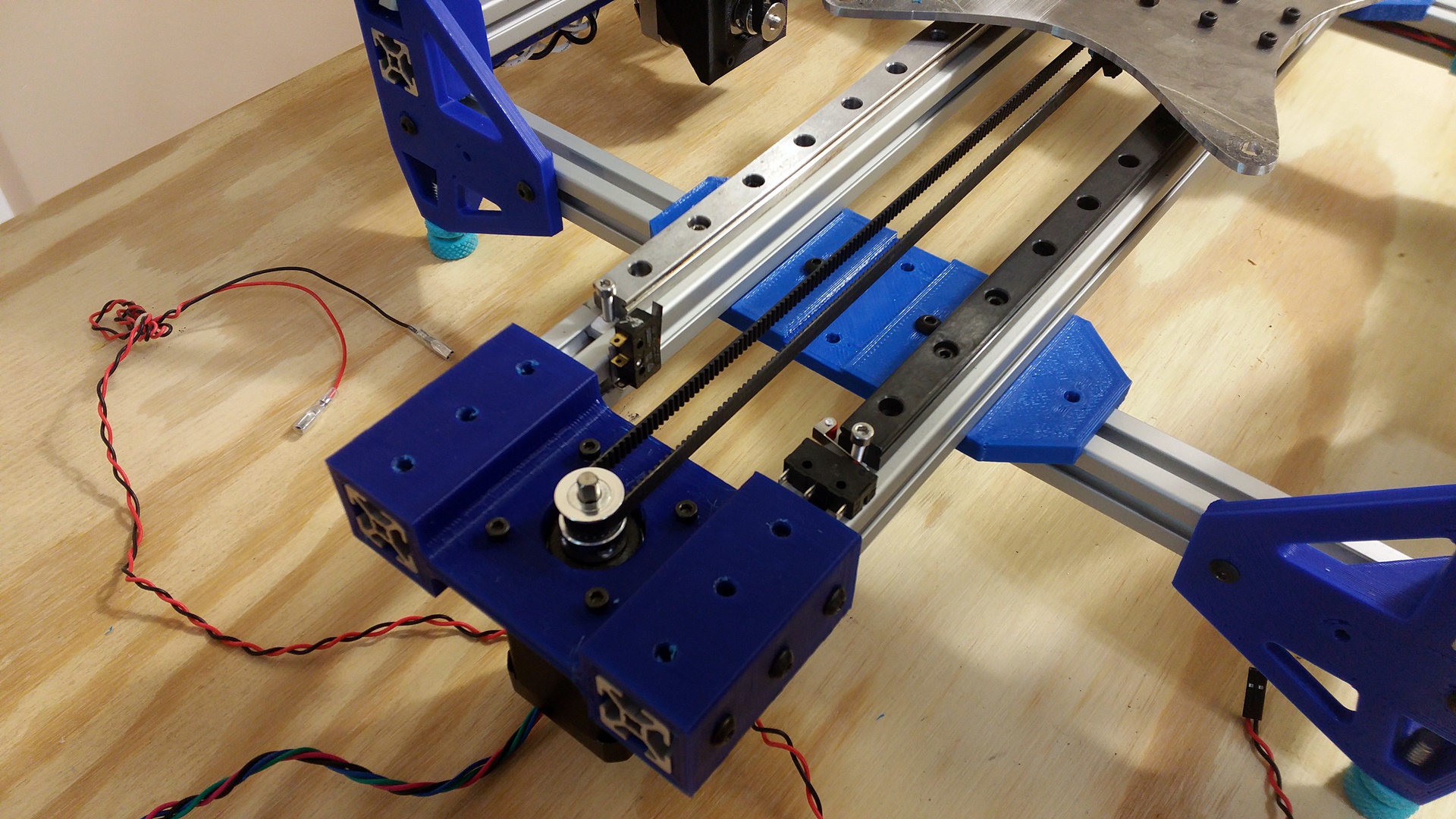

Rear Stepper Mount Bracket with mockup of possible Limit Switch locations (held on with VHB)

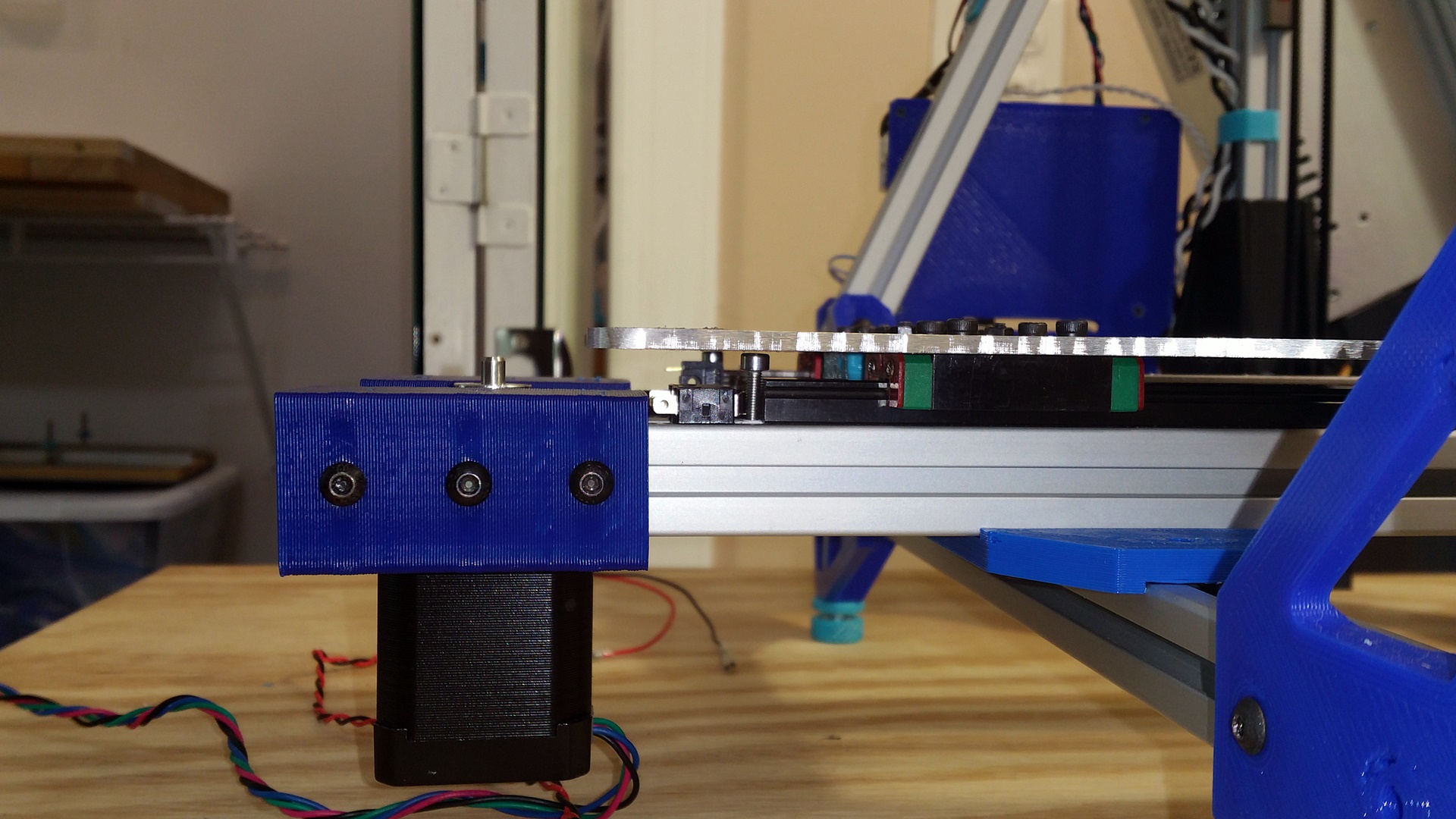

The clearance here is very tight between the 7075 Aluminum Carriage Plate and the Anti-Runoff Screws.
Somehow have to tuck the limit switches in here.
I've found video best conveys interaction like these. Not much room to fit in the limit switches

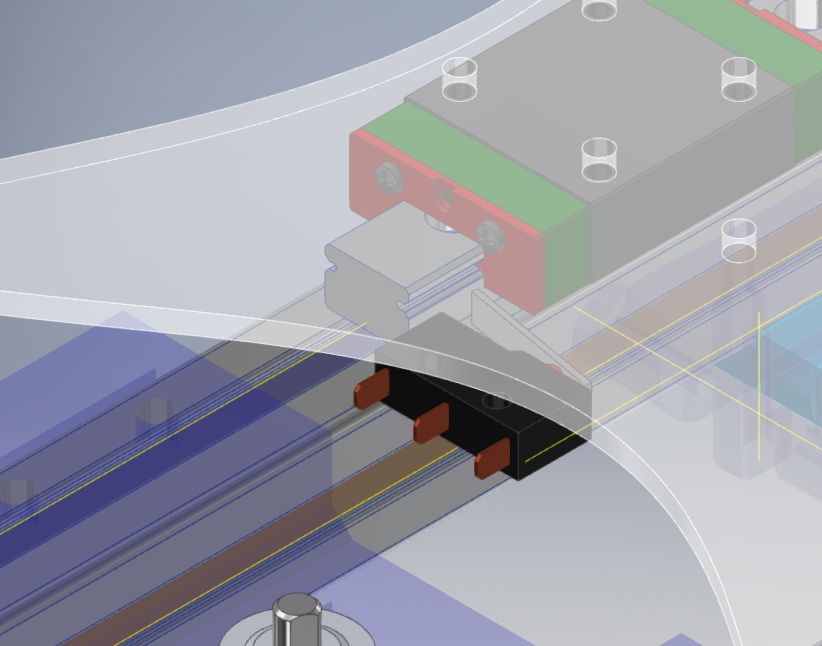

Cross-section view of the end of the GEN2 - Y-Axis, with the Rear Stepper Bracket Transparent
Testing some ideas, with help form the Discord. Shout out to _Unregistered for the brainstorming.
Horizontal Mounting:
Vertical Mount Mounting:
Keep in mind a lot of this is off the cuff, seeing what looks right and getting an idea for the fit.
I'd prefer the mount is integrated in the Rear Stepper Bracket.
See what I can some up with.
