DSLR quick mount using a constant force joint

This was an adaption of the Pass-thru Constant Force Joint for a 1/4-20 Camera mount and suggested by u/oddworld19.

It involved some tricky changes to switch from the 5/16" Bolt to the 1/4" Bolt. There is a coned washer to align the 8mm Bearing Inner Raceway with the 1/4" bolt and a new Constant Force Joint Washer with a 1/4" center hole. The 8020 Quick Mount block has 1/4" thru hole. Finally a 1" OD x 3/8" THK knurled Thumbscrew tops it off.

You can find my full write up on Constant Force Joints here.

You can get the files here: on my Thingiverse page.

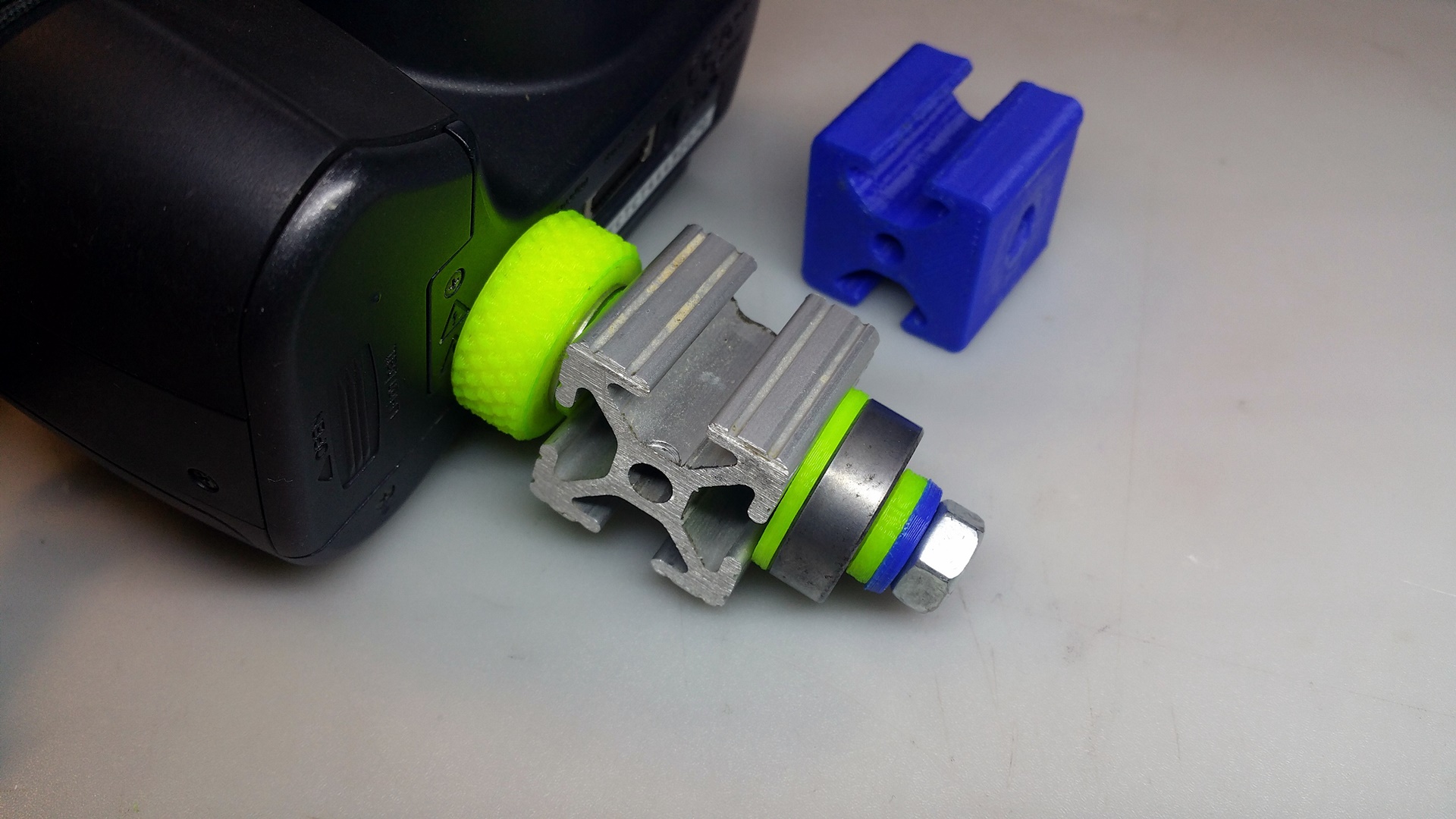

Assembly is quick. Thread it in and tighten the knurled knob.



The camera fits right into the phone stand I showed off on the Constant Force Joint page.

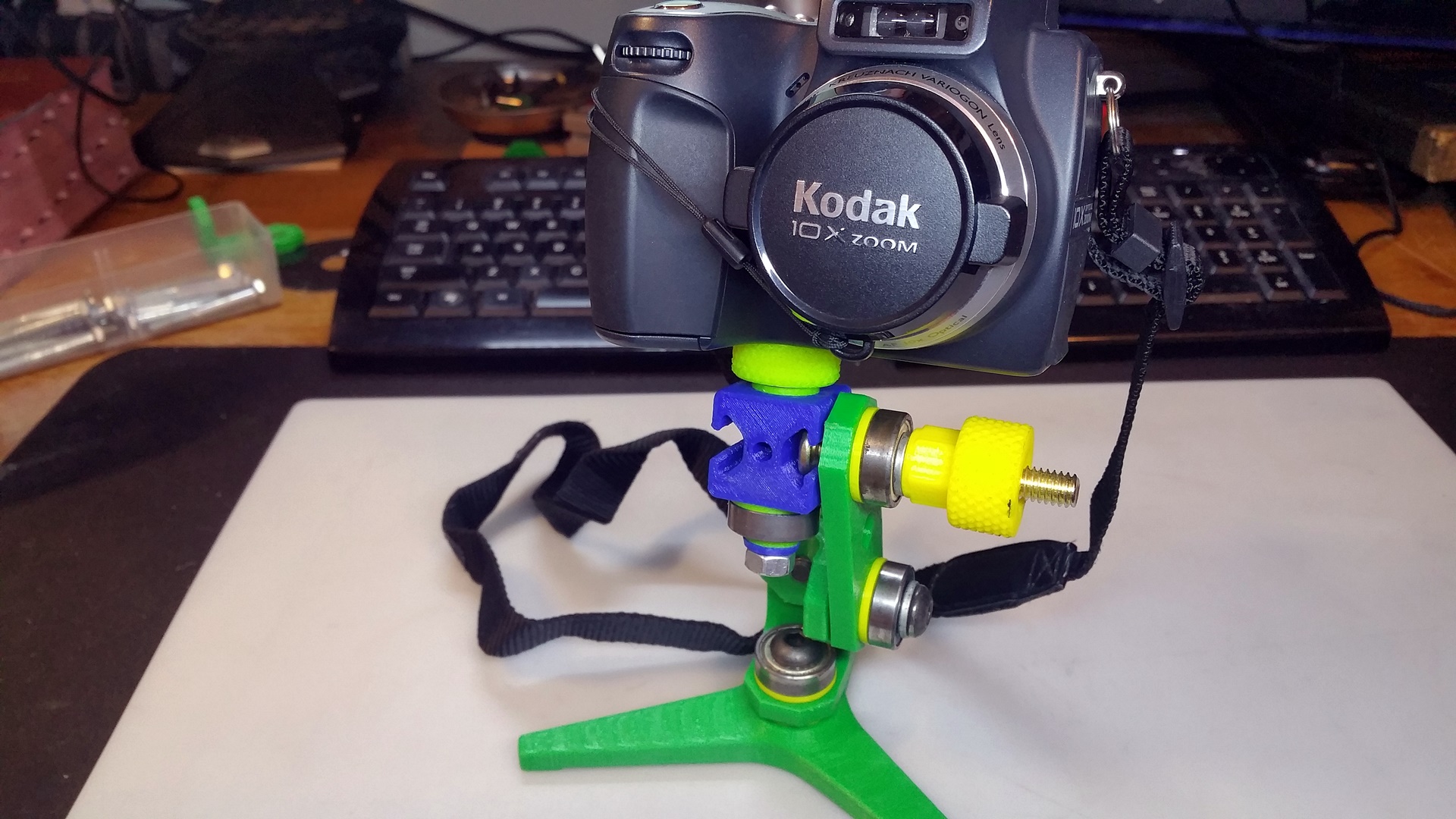

Static shot of the camera + stand.


2017-05-25 21.58.28.jpg

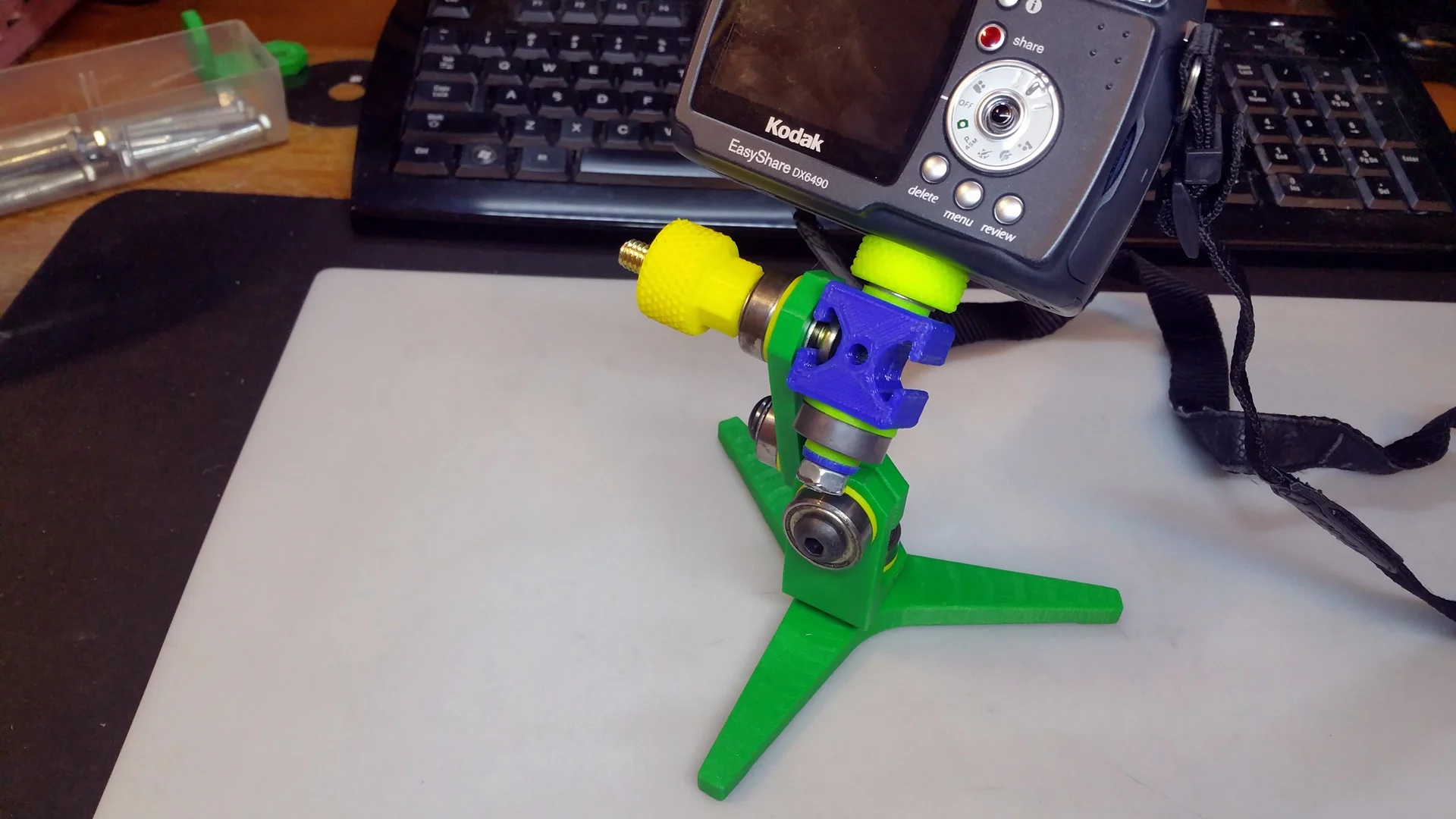

Rear shot of the camera + stand.

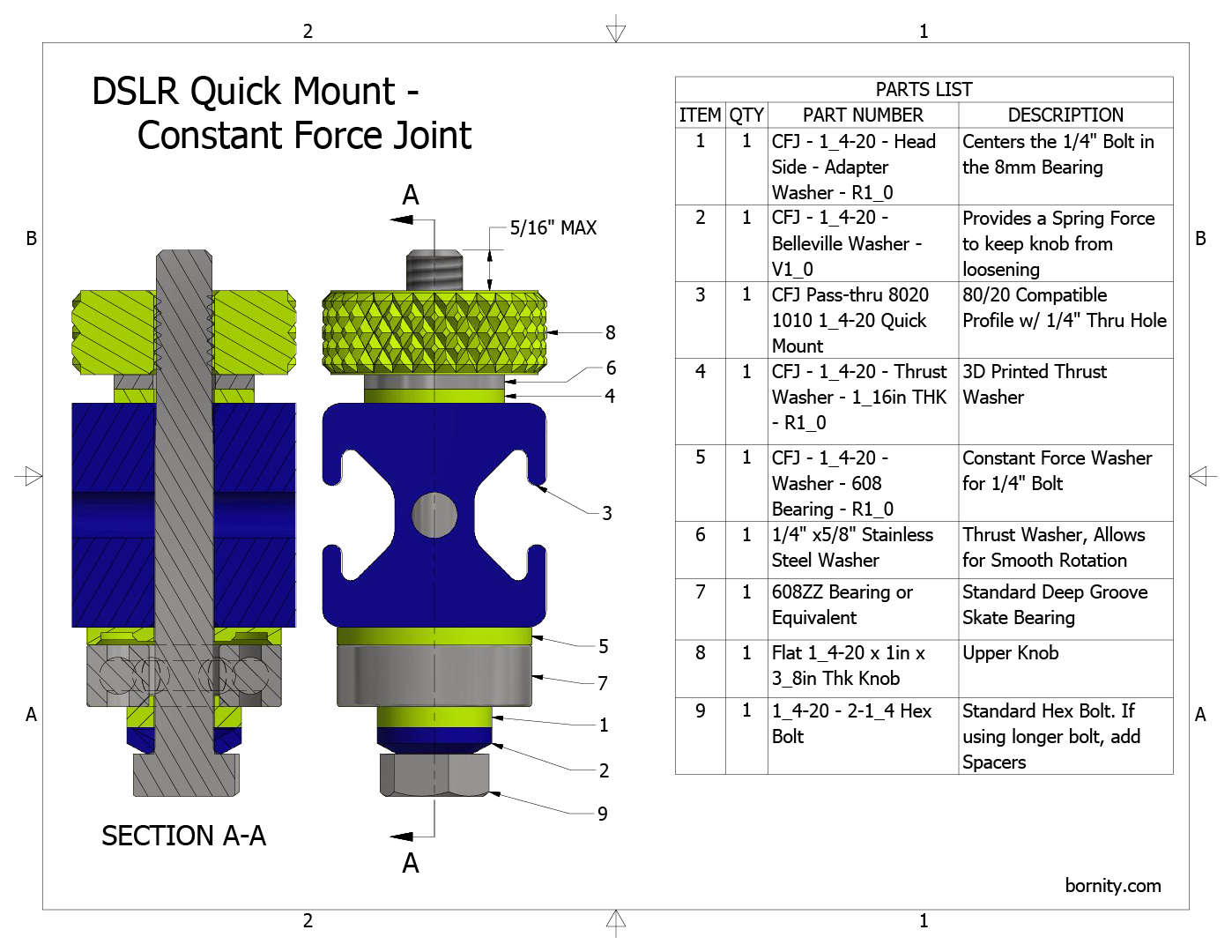

Technical Specs

BOM of the Build. You can find this with the part files on my Thingiverse page here.



80/20 1010 Compatible

A 1" Long 80/20 1010 Aluminum Extrusion can replace the quick mount block. Just drill a pass-thru hole the same size as your bolt.



2017-05-25 16.22.17.jpg


Bonus Cat!

Apollo naps on the stairs.

Thanks for stopping by!
