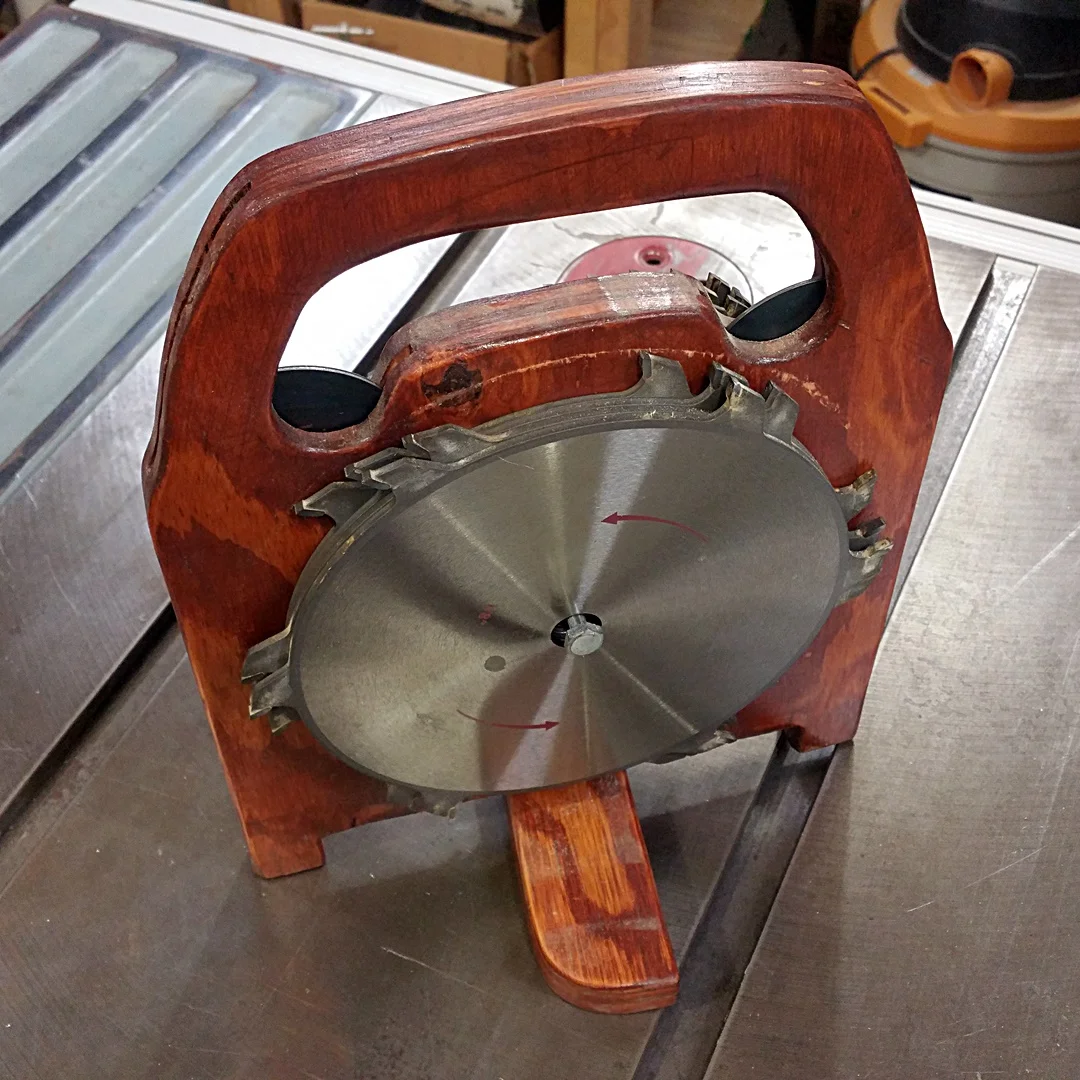

2017-05-15 16.38.56.jpg

Dado Blade Caddy

Storage and access to Dado blade sets is a pain. I came up with this caddy to store the 8" blades vertically and keep them upright on the table saw while I swapped out blades. Slots cut into the handle and filled with thin plywood give the .005"-.020" shims a home when not in use.

Full Scale plans in .pdf form are available here for download.











2017-05-15 16.39.03.jpg

2017-05-15 16.40.39.jpg

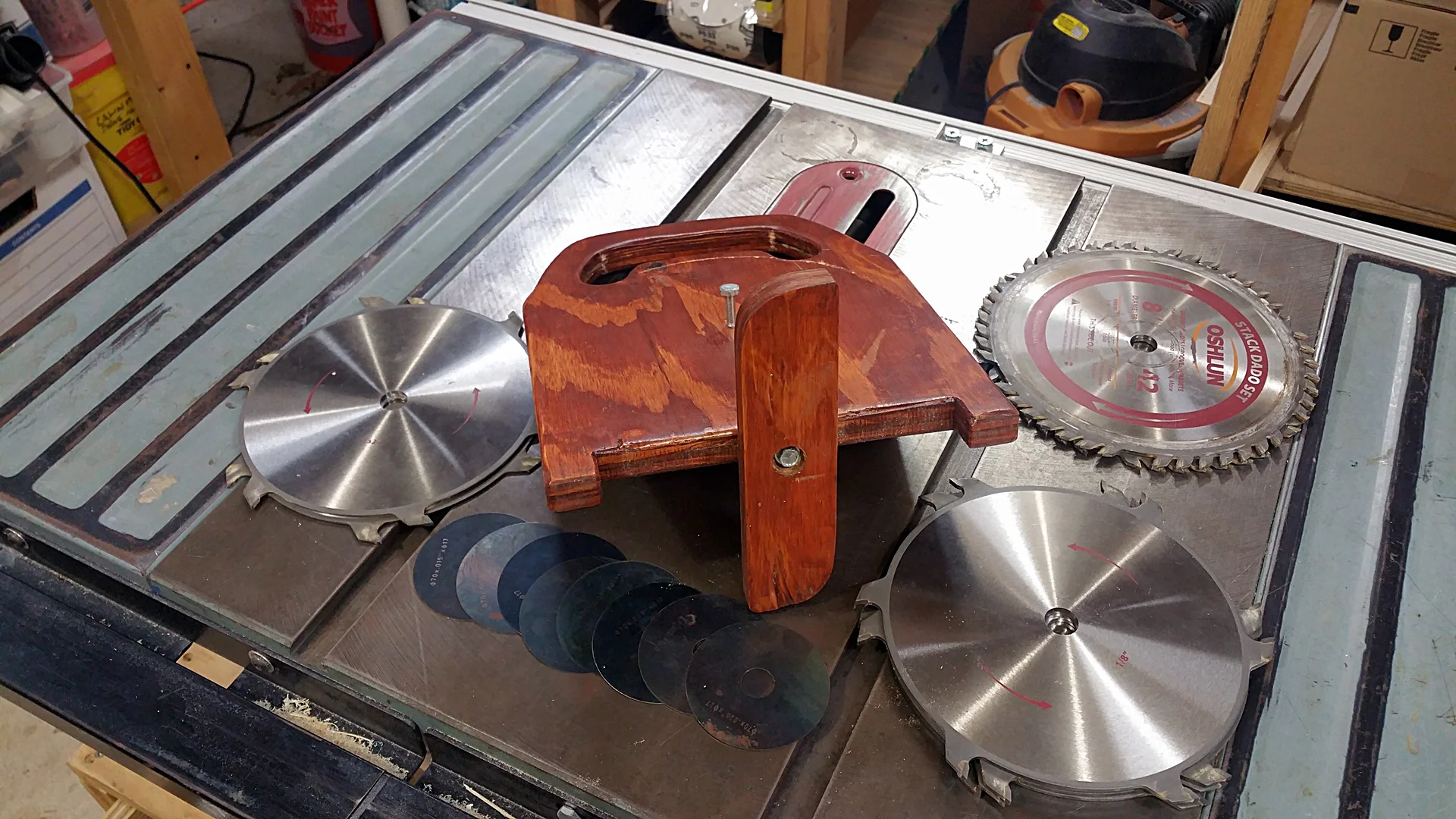

2017-05-15 16.41.18.jpg

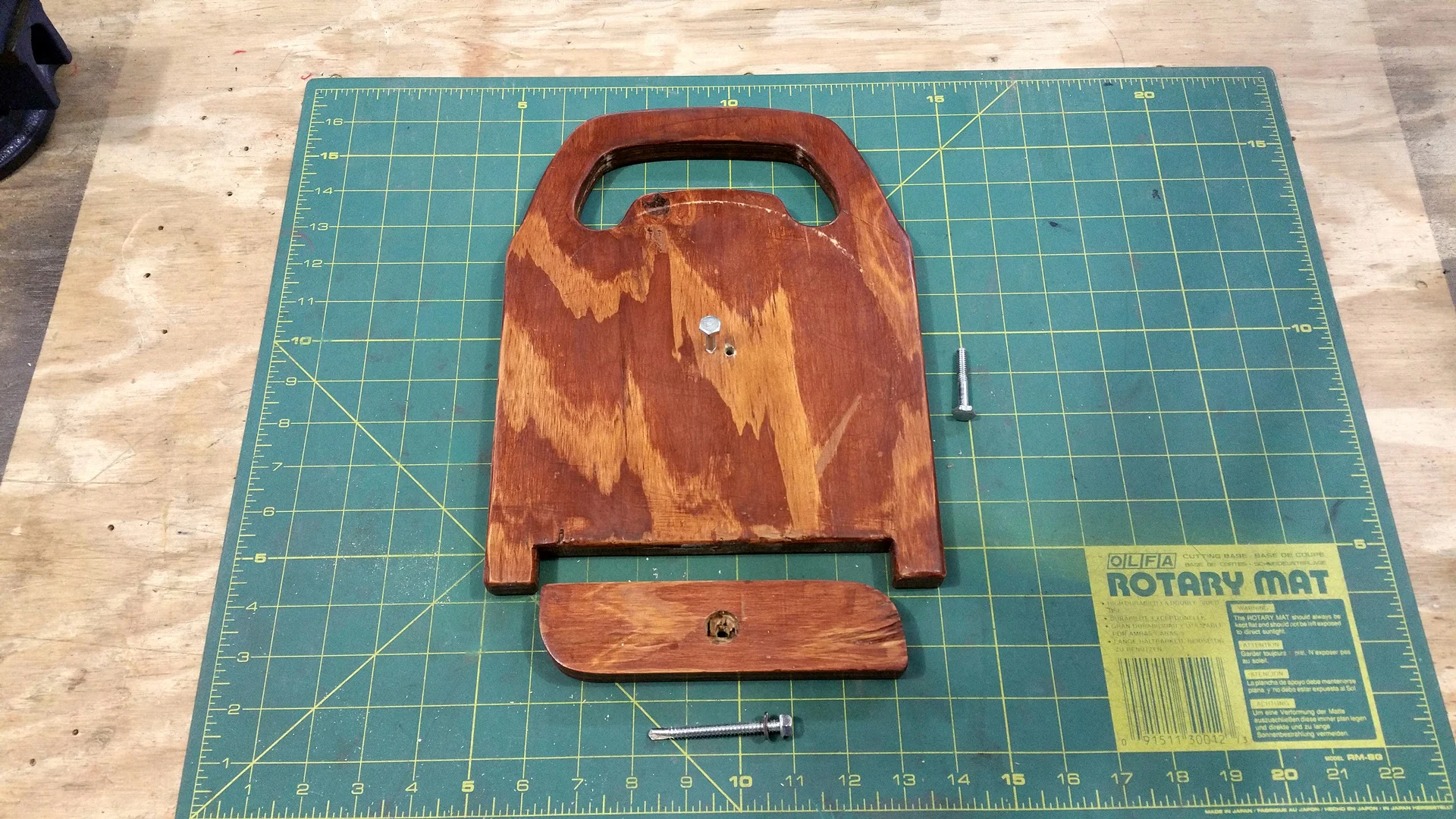

2017-05-15 16.45.41.jpg

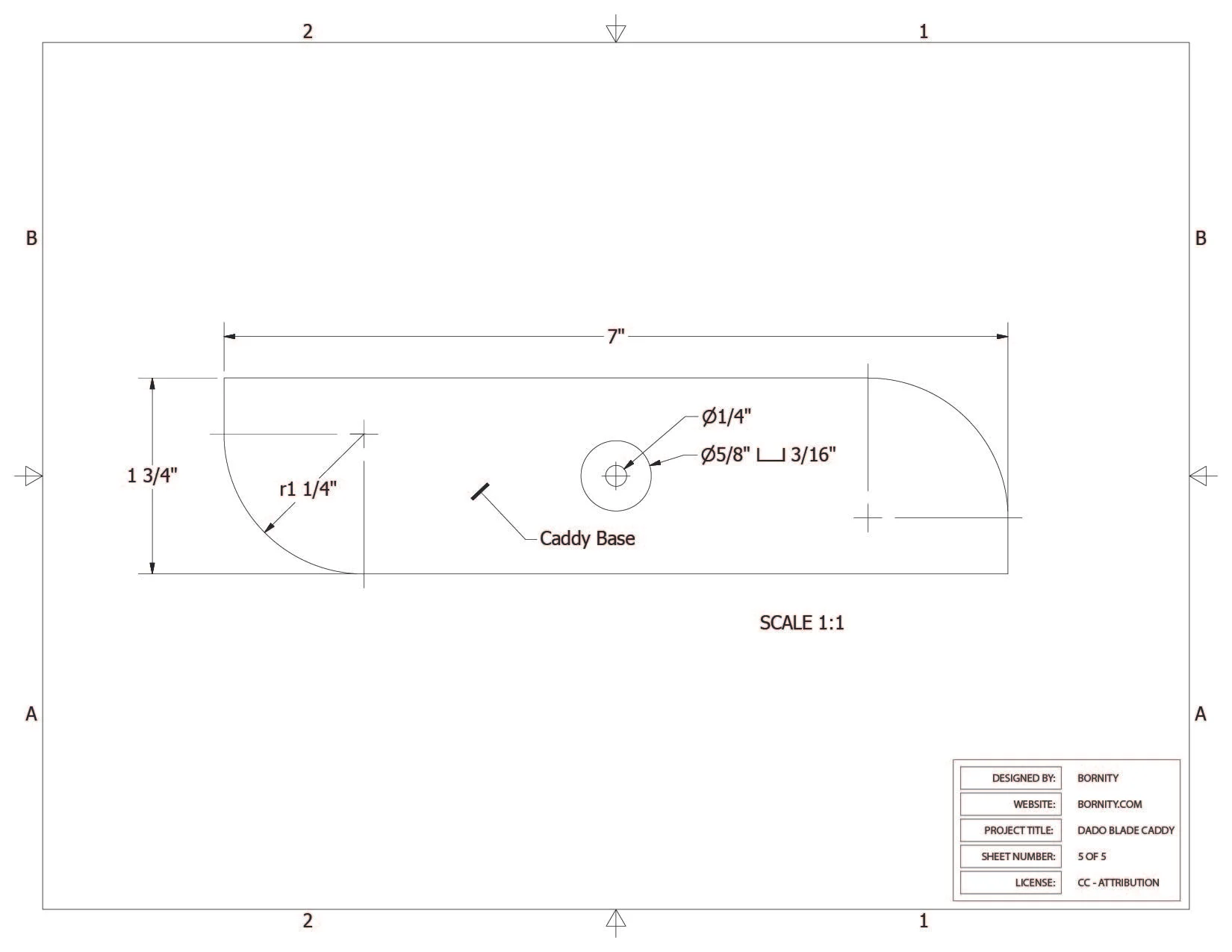

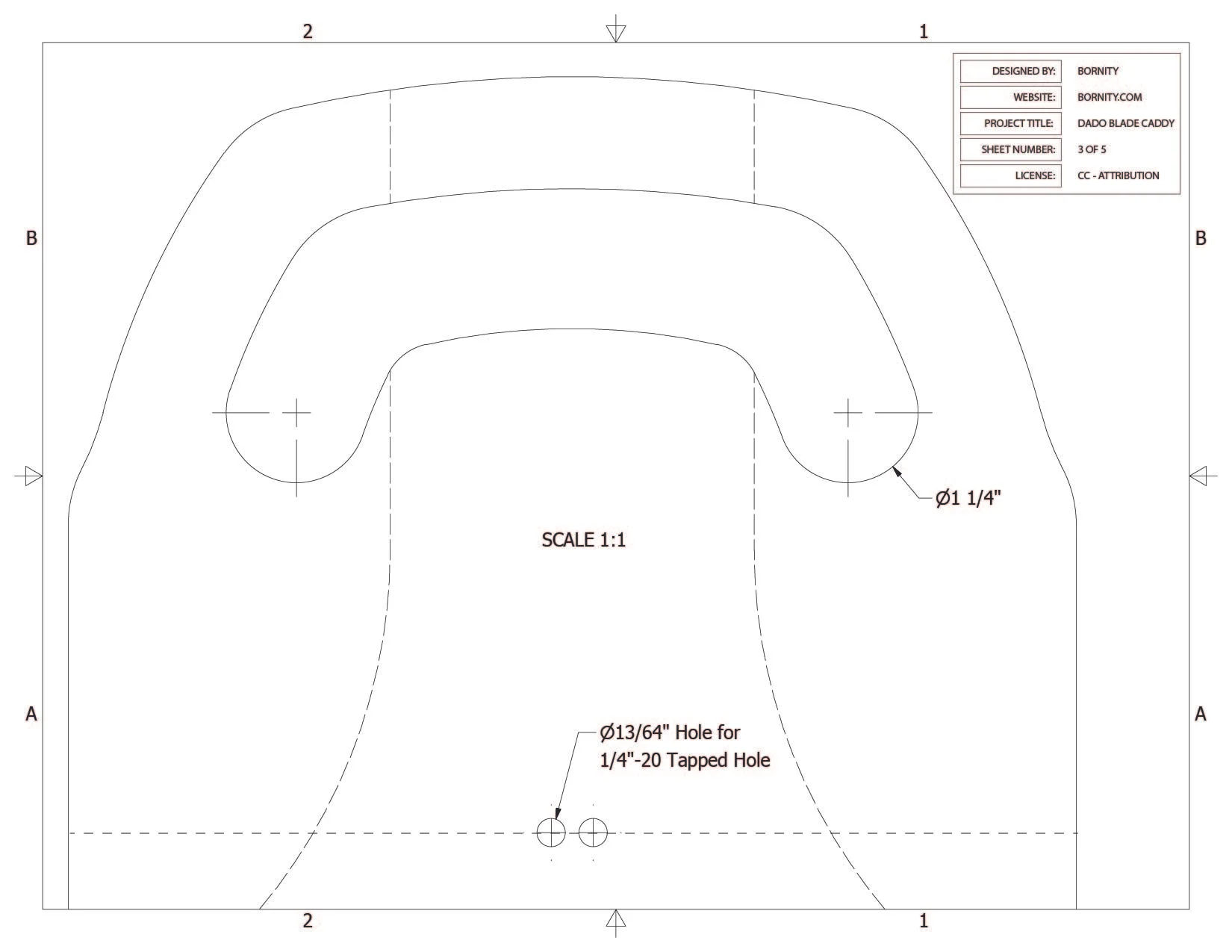

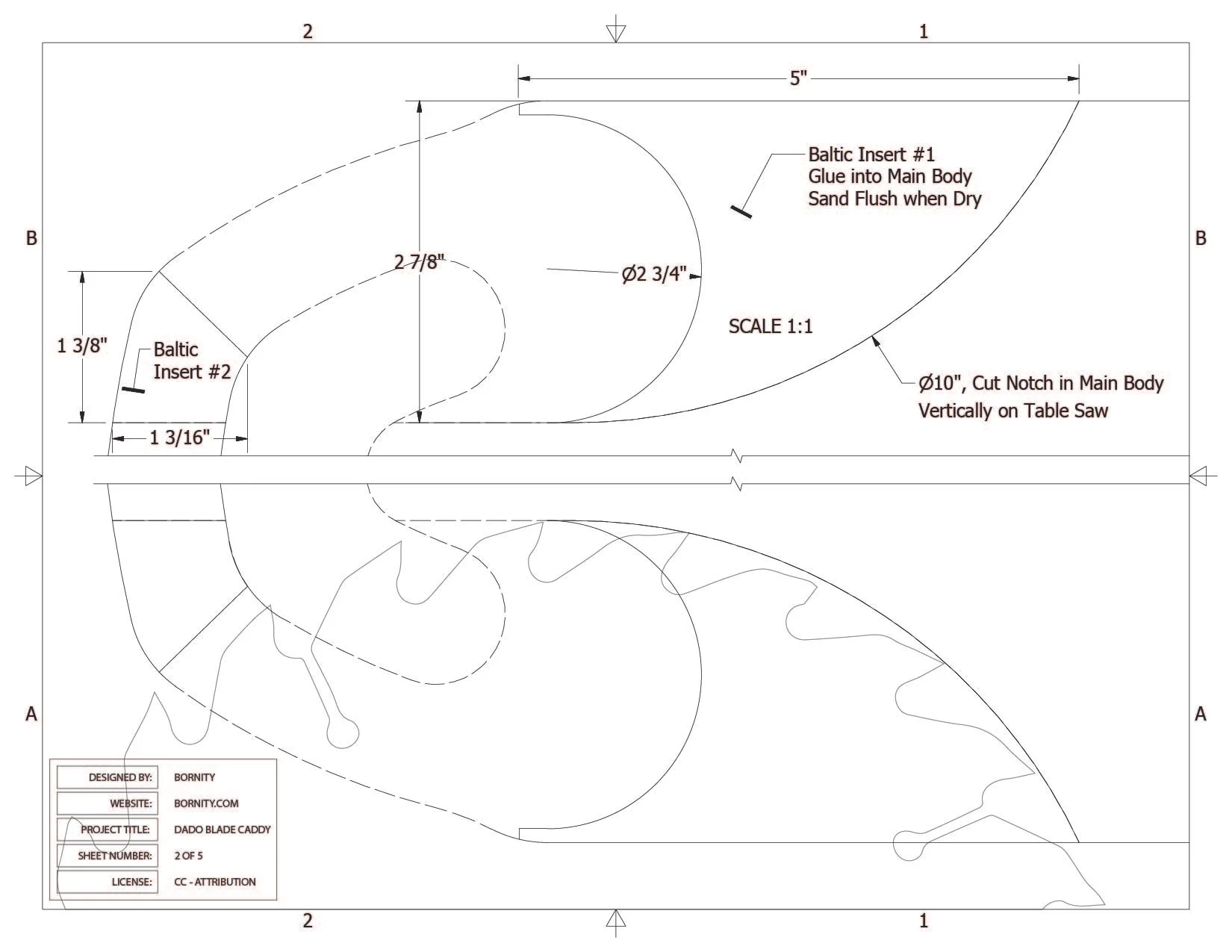

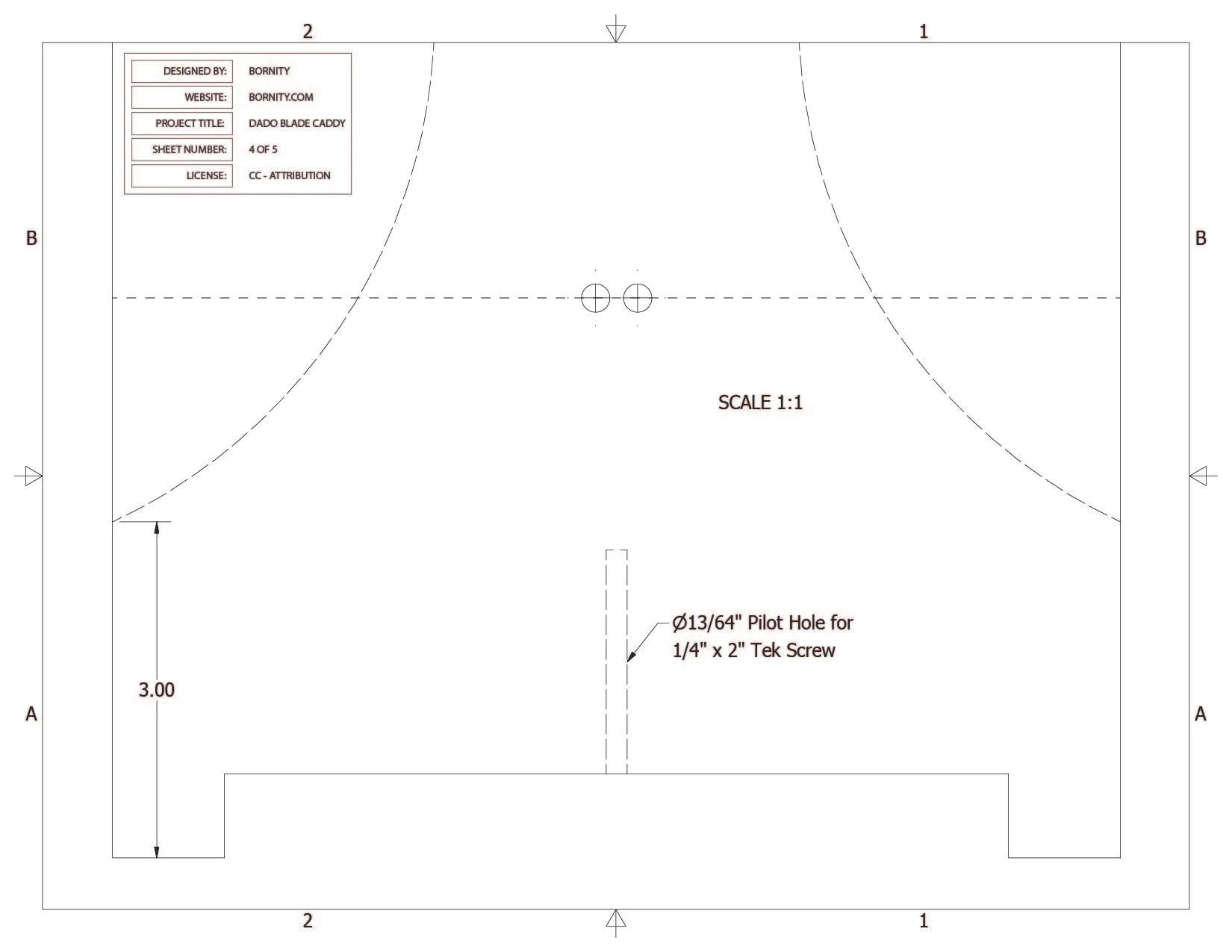

The Full Scale plans above, in printable .pdf form are available here for download.



2016-12-19 17.28.59.jpg

Bonus Cat!

Apollo apparently finds that comfortable.
