Metric Ultimate Jig Knobs

My Ultimate Jig Knobs are now optimized for Metric thread sizes. I've modified all the dimensions for metric. Overall size is now 25mm x 25mm and the hex collar is 17mm. The rear hex socket is 13mm.

I've also included .IGES and .STEP versions of the

You can get the files here: on my Thingiverse page.


Available Sizes:

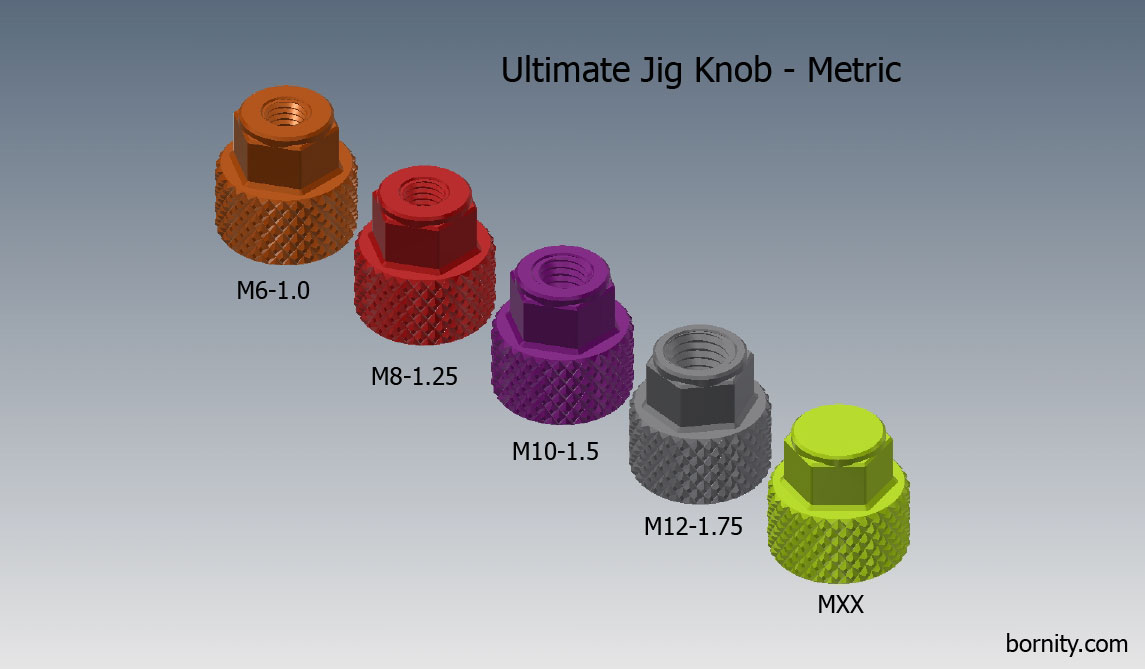

4 Thread Sizes Available. A blank version is included for modelling your own threads.


Related Pages:


Integrated 17mm Hex Collar

2017-05-29 12.26.28.jpg

17mm Hex Collar. To see the SAE version in use check out the original Ultimate Jig Knob page.




Included Sizes.

2017-05-29 12.26.28.jpg

Technical Specs. You can get the files here: on my Thingiverse page.



2017-05-27 22.16.34.jpg

Bonus Cats!

Starsky and Apollo hunt for a cricket in the garage.
